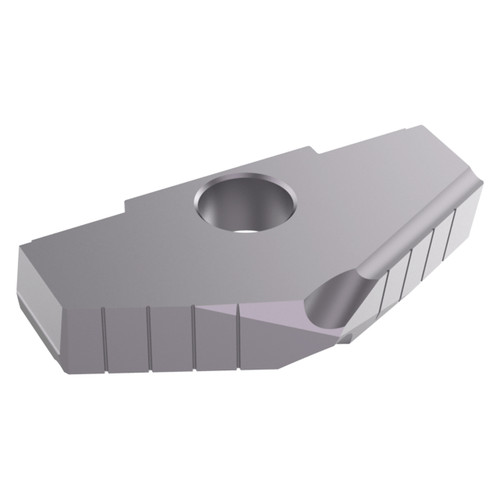

Allied Machine and Engineering 1027A-0329 | 3-29/32" Diameter x 5/8" Thickness TiAlN Coated G Series Spade Drill Insert

$237.00
Brand:
Allied Machine and Engineering
Thickness (Decimal Inch):
0.6300"
Thickness (mm):
15.88mm
interval quantity:
2
SKU:
23036109
UPC:
Weight:
0.93 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

High Performance Spade Drills (HP) were designed for end-users who had Universal Style holders, but were looking for improved performance. HP spade drills fit into the Universal holders, but offer the high-tech geometry and performance benefits.

Features:

  • Single piece design in A-C series eliminates the need for adaptors ensuring maximum tool performance in these smaller sizes
  • Unique tool geometry reduces thrust up to 30% when compared to uncoated Universal style spade drills

Product Specifications
# MFG1027A-0329
Diameter (Decimal Inch)3.9063"
Diameter Fractional Equivalent3-29/32"
Diameter (mm)99.22mm
GradeHigh Speed Steel
Locating Area (Inch)3-1/16"
Reference Length with Adapter (Inch)2-23/32"
SeriesG
Thickness (Inch)5/8"
Tool Reference Length (Inch)1-15/16"
CoatingTiAlN
