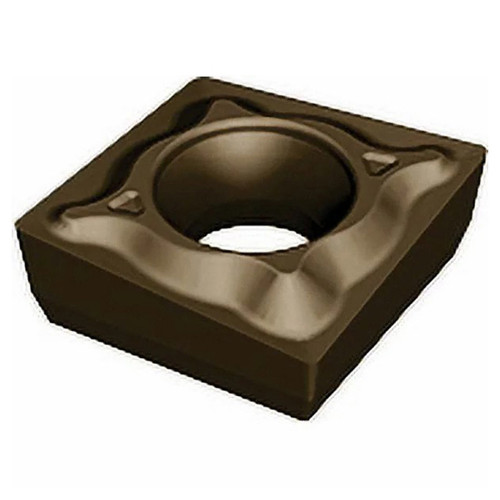

Allied Machine and Engineering 11820970 | 0.083" Diameter x 0.071" Thickness x 0.016" Radius EC 08 Series Indexable Drill Insert

$22.30 $21.19
(You save $1.11)
Brand:
Allied Machine and Engineering
Insert Style:
XCNT
Insert Size:
040104
Inscribed Circle (Inch):
11/64"
Inscribed Circle (Decimal Inch):
0.1770"
Inscribed Circle (mm):
4.50mm
Width (Inch):
5/32"
Width (Decimal Inch):
0.1570"
Width (mm):
3.99mm
Thickness (Inch):
5/64"
Thickness (Decimal Inch):
0.0710"
Thickness (mm):
1.80mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23042279
UPC:
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

EcoCut can perform up to four operations with one tool. The EcoCut tool can be used for drilling, boring applications, facing operations and standard turning operations.

Features:


Product Specifications
# MFG11820970
Screw Hole Diameter (Inch)0.083"
Insert Thickness (Inch)0.071"
Corner Radius (Inch)0.016"
IC Size (Inch)0.177"
Cutting Width (Inch)0.157"
SeriesEC 08
Cutting DirectionRight
GradeCTPP430
Shape88 Degree
Back Clearance7 Degree
