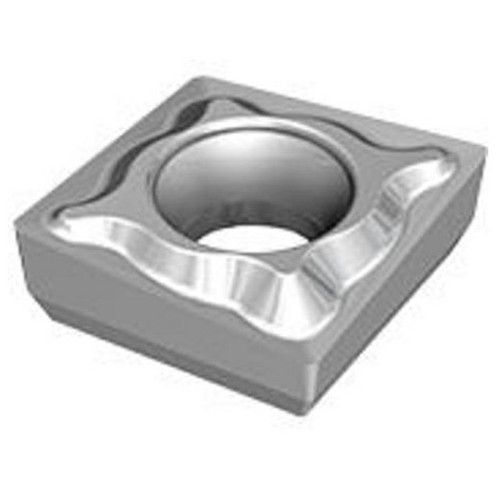

Allied Machine and Engineering 11821230 | 0.209" Diameter x 0.187" Thickness x 0.016" Radius EC 25 Series Indexable Drill Insert

$27.30 $25.94
(You save $1.36)
Brand:
Allied Machine and Engineering
Insert Style:
XCNT
Insert Size:
130404
Inscribed Circle (Inch):
17/32"
Inscribed Circle (Decimal Inch):
0.5310"
Inscribed Circle (mm):
13.49mm
Width (Inch):
31/64"
Width (Decimal Inch):
0.4920"
Width (mm):
12.50mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23042289
UPC:
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

EcoCut can perform up to four operations with one tool. The EcoCut tool can be used for drilling, boring applications, facing operations and standard turning operations.

Features:


Product Specifications
# MFG11821230
Screw Hole Diameter (Inch)0.209"
Insert Thickness (Inch)0.187"
Corner Radius (Inch)0.016"
IC Size (Inch)0.531"
Cutting Width (Inch)0.492"
SeriesEC 25
Cutting DirectionNeutral
GradeCTPP430
Shape88 Degree
Back Clearance7 Degree
