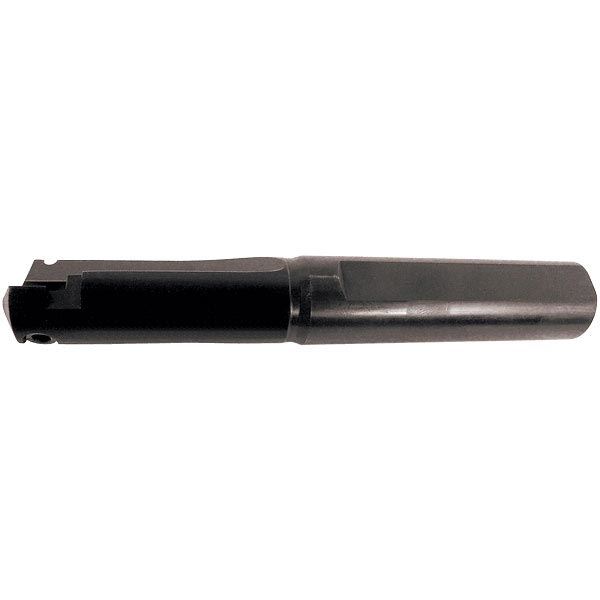

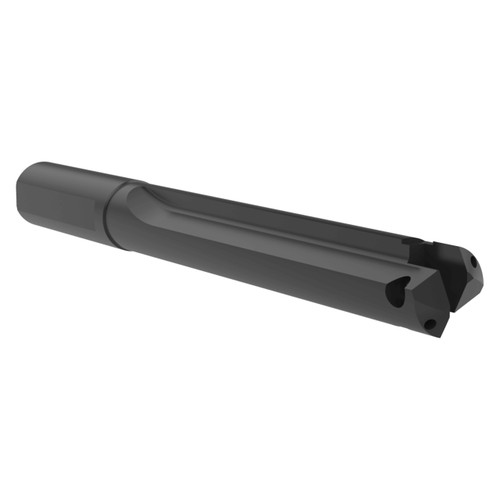

Allied Machine and Engineering 20461-2000 | 3-7/8" Diameter x 9-1/2" OAL F Series Indexable Spade Drill

$610.00
Brand:
Allied Machine and Engineering
Series:
F
Minimum Drill Diameter (Inch):
3"
Minimum Drill Diameter (Decimal Inch):
3.0000"
Minimum Drill Diameter (mm):
76.20mm
Maximum Drill Diameter (Inch):
3-7/8"
Maximum Drill Diameter (Decimal Inch):
3.8800"
Maximum Drill Diameter (mm):
98.43mm
Shank Type:
Lathe
Flute Type:
Straight
interval quantity:
1
SKU:
10004150
UPC:
Weight:
10.49 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Allied Machine and Engineering 20461-2000 | 3-7/8" Diameter x 9-1/2" OAL F Series Indexable Spade Drill

HP spade drills and Universal spade drills fit into the Universal holders.

Features:

  • Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines

Product Specifications
# MFG20461-2000
Flute Length (Inch)5-1/2"
HP Reference Length (Inch)6-5/32"
Overall Length (Inch)9-1/2"
Shank length (Inch)4"
Maximum Diameter (Inch)3-7/8"
Minimum Diameter (Inch)3"
Shank Diameter (Inch)2"
SeriesF
Shank TypeLathe
Flute TypeStraight
Length TypeShort
Deep HoleNo

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
