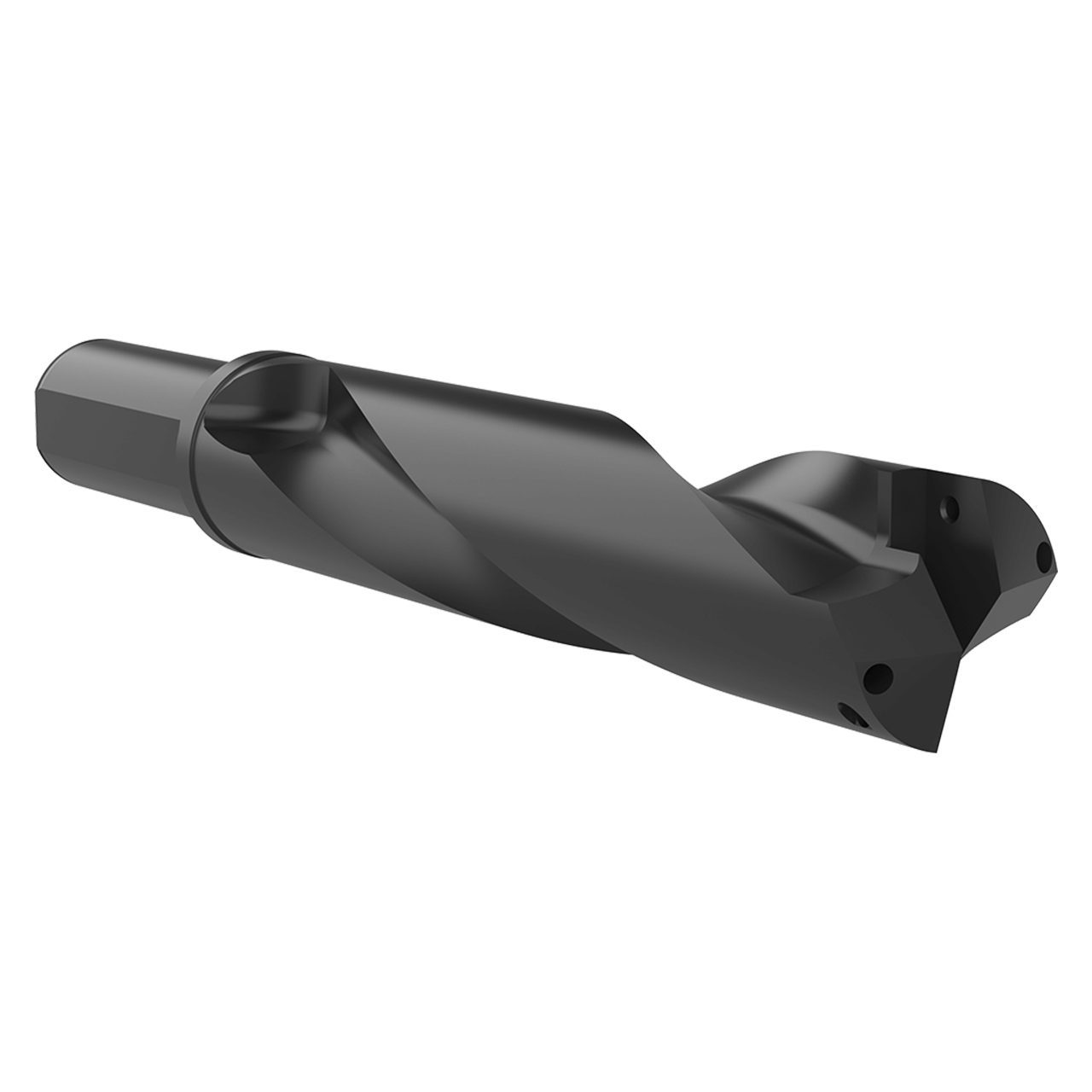

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24050H-200F |
| Body Length (Inch) | 12-1/2" |
| Drill Depth (Inch) | 10-3/4" |
| Flute Type | Helical |
| Length Type | Standard |
| Maximum Diameter (Inch) | 3-1/2" |
| Minimum Diameter (Inch) | 2-1/2" |
| Overall length (Inch) | 17-1/4" |
| Pipe Tap Rear (Inch) | 1/2" |
| Series | 5 |
| Shank Diameter (Inch) | 2 |
| Shank Length (Inch) | 4-1/2" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 12-3/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
5
Minimum Drill Diameter (Inch):
2-1/2"
Minimum Drill Diameter (Decimal Inch):
2.5000"
Minimum Drill Diameter (mm):
63.50mm
Maximum Drill Diameter (Inch):
3-1/2"
Maximum Drill Diameter (Decimal Inch):
3.5000"
Maximum Drill Diameter (mm):
88.90mm
Shank Type:
Flanged
Shank Diameter (Inch):
2"
Shank Diameter (Decimal Inch):
2.0000"
Shank Diameter (mm):
50.80mm
Overall Length (Inch):
17-1/4"
Overall Length (Decimal Inch):
17.2500"
Overall Length (mm):
438.15mm
Flute Type:
Helical
