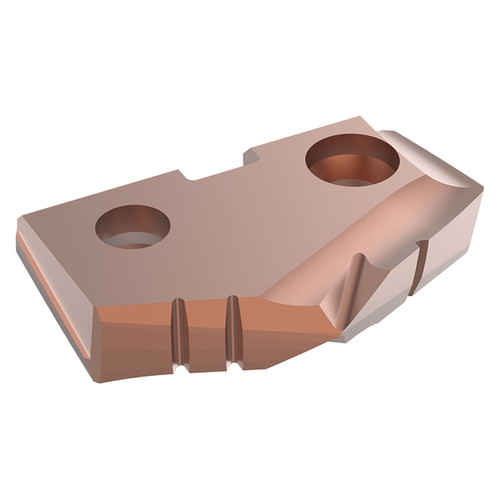

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.
Features:
- Notch Point geometry improves stability, hole straightness, and reduces thrust
- Web Thin reduces thrust and increases point strength, allowing greater reliability
- Helical Margin increases drill stability
- Helical Flute improves tool life
Product Specifications
| # MFG | 452H-0108 |
| Diameter (Inch) | 1.2500" |
| Diameter Fractional Equivalent | 1-1/4" |
| Diameter (mm) | 31.75mm |
| Thickness (Inch) | 3/16" |
| Included Angle (Degree) | 132 Degree |
| Series | 2 |
| Geometry | Standard |
| Material | Super Cobalt |
| Coating | AM200 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
Included Angle:
132 Degree
Finish/Coating:
AM200
Material:
High-Speed Steel
Thickness (Inch):
3/16"
Material Grade:
Super Cobalt
Application:
General Purpose
