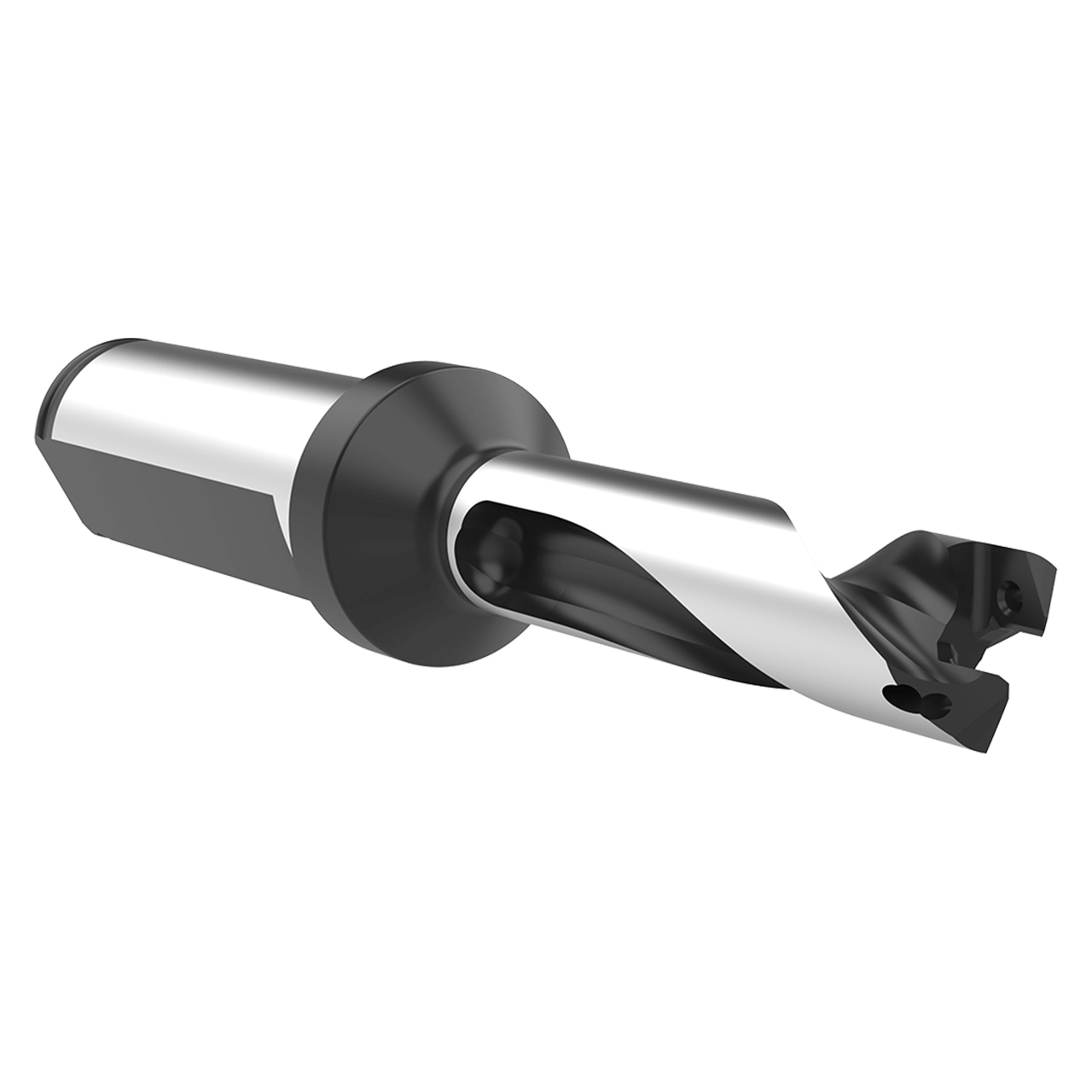

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60313S-20FM |
| Body Length (mm) | 69.3mm |
| Drill Depth (mm) | 42mm |
| Maximum Diameter (Decimal Inch) | 0.5511" |
| Maximum Diameter (mm) | 13.99mm |
| Minimum Diameter (Decimal Inch) | 0.5118" |
| Minimum Diameter (mm) | 13mm |
| Overall Length (mm) | 119.3mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 13 |
| Shank Diameter (mm) | 20.00mm |
| Shank Length (mm) | 50mm |
| Tool Reference Length (mm) | 71.5mm |
| Length Type | 3xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
