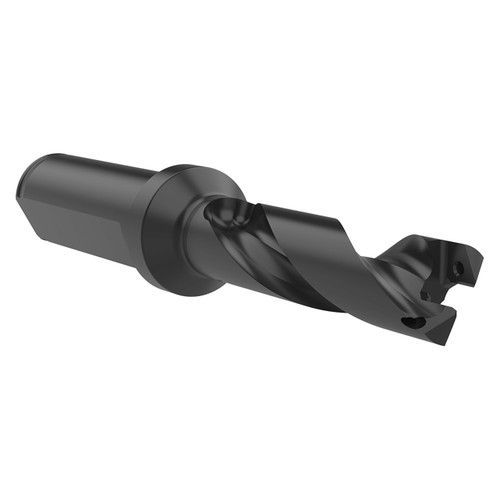

Allied Machine and Engineering 60315H-075F | 15.00mm Diameter x 19.05mm Shank 15 Series Helical Flute Indexable Spade Drill

$318.00 $298.92
(You save $19.08)
Brand:
Allied Machine and Engineering
Series:
15
Minimum Drill Diameter (Inch):
19/32"
Minimum Drill Diameter (Decimal Inch):
0.5906"
Minimum Drill Diameter (mm):
15.00mm
Maximum Drill Diameter (Inch):
5/8"
Maximum Drill Diameter (Decimal Inch):
0.6298"
Maximum Drill Diameter (mm):
15.99mm
Shank Type:
Flanged
Drill Depth by Diameter Ratio:
3xD
Maximum Drill Depth (Inch):
1-57/64"
Maximum Drill Depth (Decimal Inch):
1.8900"
Maximum Drill Depth (mm):
48.02mm
Flute Type:
Helical
interval quantity:
2
SKU:
23034175
UPC:
Weight:
0.42 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

Related Products

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.

Features:

  • The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
  • Straight and helical flute options
  • Precision-ground locating slots
  • Cylindrical flanged and flanged flat shank options

Product Specifications
# MFG60315H-075F
Body Length (Inch)2-61/64"
Drill Depth (Inch)1-57/64"
Maximum Diameter (Decimal Inch)0.6298"
Maximum Diameter (mm)15.99mm
Minimum Diameter (Decimal Inch)0.5906"
Minimum Diameter (mm)15mm
Overall Length (Inch)4-63/64"
Pipe Tap Rear (Inch)1/8 (NPT)
Series15
Shank Diameter (Inch)3/4"
Shank Length (Inch)2-1/32"
Tool Reference Length (Inch)3-3/64"
Length Type3xD
Coolant Inlet Style RearTSC
FlatYes
Flute TypeHelical
Shank TypeFlanged
