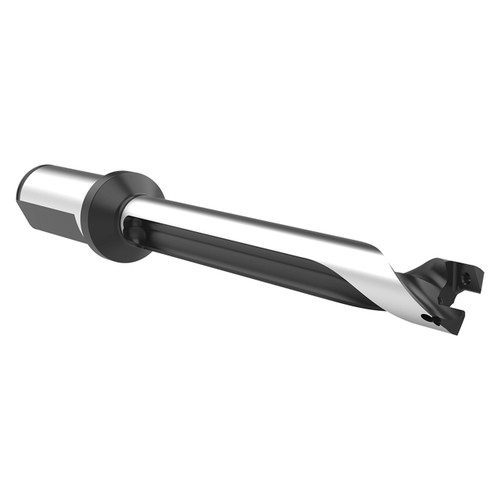

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60318H-25FM |
| Body Length (mm) | 94mm |
| Drill Depth (mm) | 60mm |
| Maximum Diameter (Decimal Inch) | 0.7873" |
| Maximum Diameter (mm) | 19.99mm |
| Minimum Diameter (Decimal Inch) | 0.7087" |
| Minimum Diameter (mm) | 18mm |
| Overall Length (mm) | 150mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 18 |
| Shank Diameter (mm) | 25.00mm |
| Shank Length (mm) | 56mm |
| Tool Reference Length (mm) | 96.8mm |
| Length Type | 3xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Helical |
| Shank Type | Flanged |
