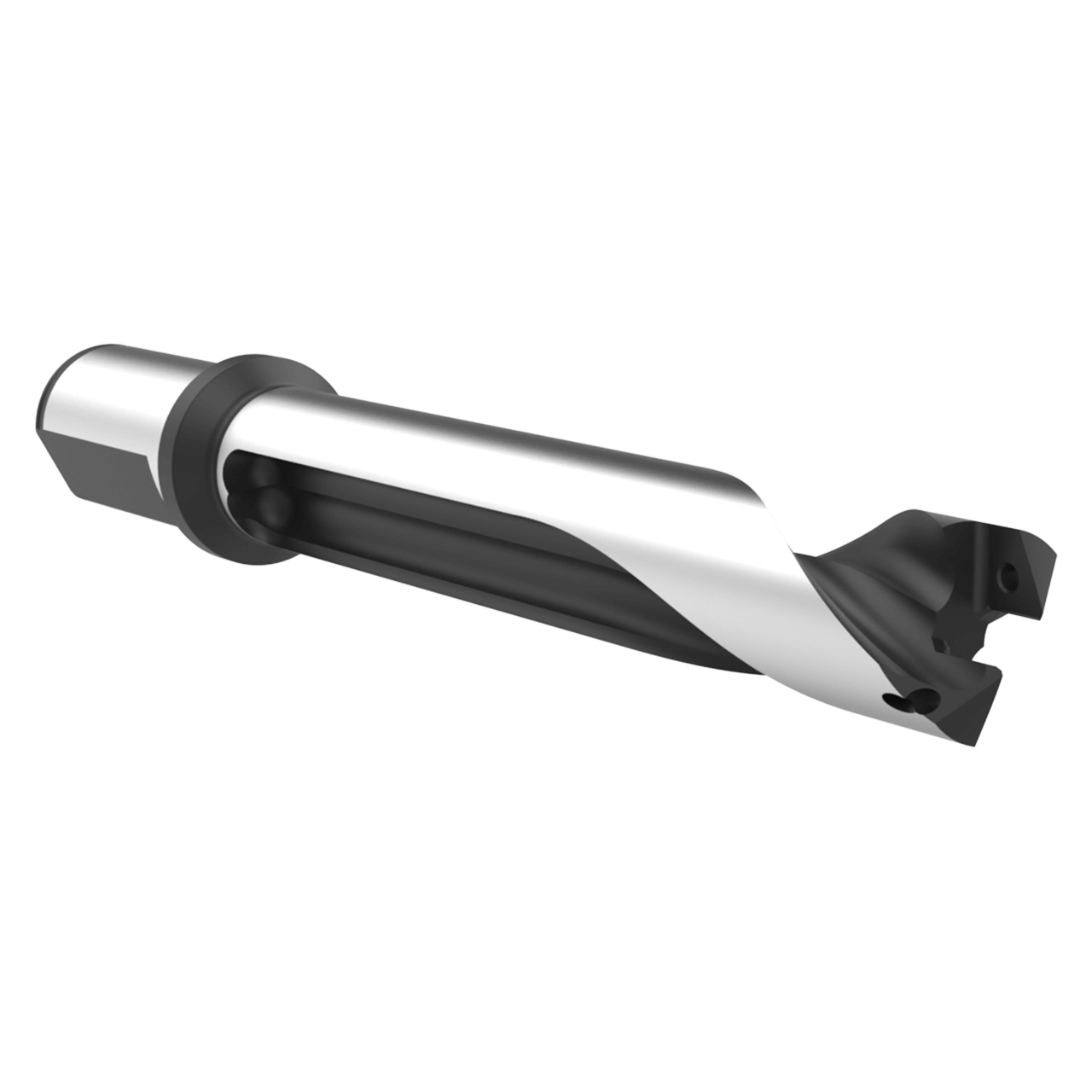

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60529S-32FM |
| Body Length (mm) | 200.1mm |
| Drill Depth (mm) | 159.9mm |
| Maximum Diameter (Decimal Inch) | 1.2597" |
| Maximum Diameter (mm) | 31.99mm |
| Minimum Diameter (Decimal Inch) | 1.1417" |
| Minimum Diameter (mm) | 29mm |
| Overall Length (mm) | 260.1mm |
| Pipe Tap Rear (mm) | 1/4 (BSP) |
| Series | 29 |
| Shank Diameter (mm) | 32.00mm |
| Shank Length (mm) | 60mm |
| Tool Reference Length (mm) | 203.1mm |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
29
Minimum Drill Diameter (Inch):
1-9/64"
Minimum Drill Diameter (Decimal Inch):
1.1417"
Minimum Drill Diameter (mm):
29.00mm
Maximum Drill Diameter (Inch):
1-17/64"
Maximum Drill Diameter (Decimal Inch):
1.2597"
Maximum Drill Diameter (mm):
31.99mm
Shank Type:
Flanged
Shank Diameter (Inch):
1-17/64"
Shank Diameter (Decimal Inch):
1.2600"
Shank Diameter (mm):
32.00mm
Overall Length (Inch):
10-15/64"
Overall Length (Decimal Inch):
10.2400"
Overall Length (mm):
260.10mm
Drill Depth by Diameter Ratio:
5xD
Maximum Drill Depth (Inch):
6-19/64"
Maximum Drill Depth (Decimal Inch):
6.3000"
Maximum Drill Depth (mm):
159.90mm
Flute Type:
Straight
interval quantity:
2
