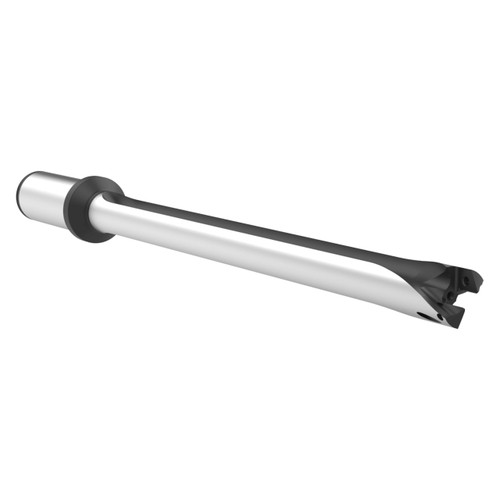

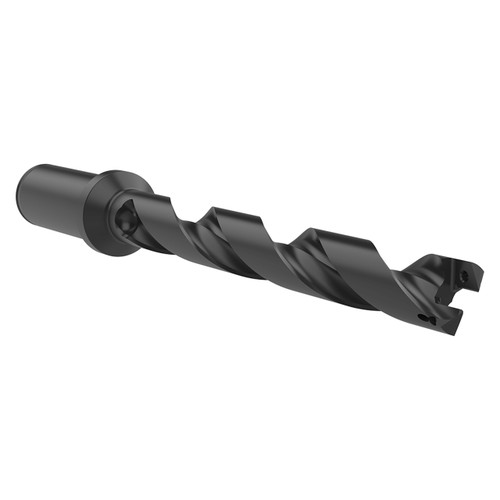

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60720H-25CM |
| Body Length (mm) | 188.1mm |
| Drill Depth (mm) | 153.9mm |
| Maximum Diameter (Decimal Inch) | 0.8660" |
| Maximum Diameter (mm) | 21.99mm |
| Minimum Diameter (Decimal Inch) | 0.7874" |
| Minimum Diameter (mm) | 20mm |
| Overall Length (mm) | 244mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 20 |
| Shank Diameter (mm) | 25.00mm |
| Shank Length (mm) | 56mm |
| Tool Reference Length (mm) | 190.9mm |
| Length Type | 7xD |
| Coolant Inlet Style Rear | TSC |
| Flat | No |
| Flute Type | Helical |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
