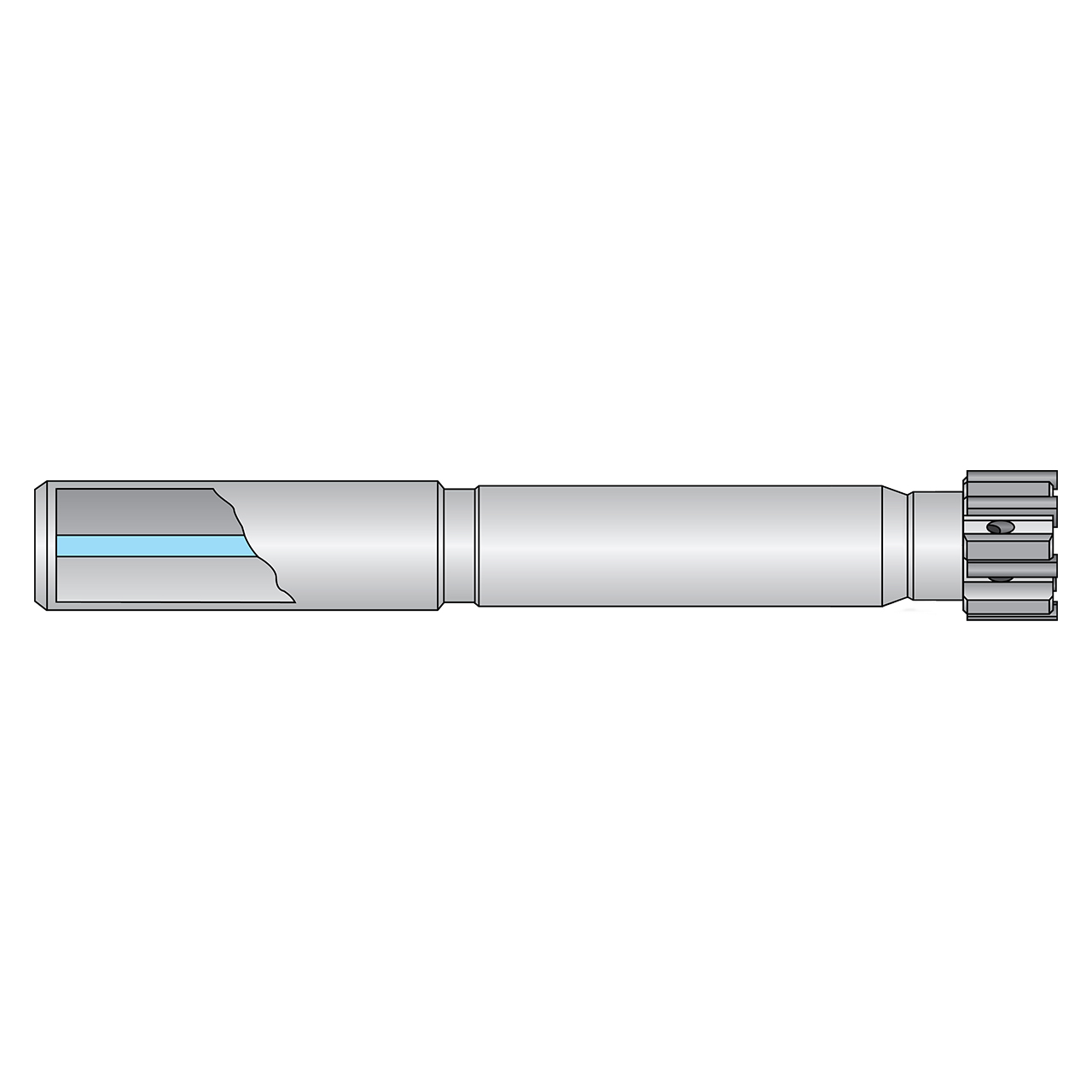

The replaceable head model allows for on-machine replacement, significantly reducing set-up and down time and allowing for multiple diameters within the same arbor reducing inventory requirements.
Features:
- A variety of leads provide tailored solutions for every applications
- Tight tolerances (+/- 0.0002") capable with expandable diameter head design
Product Specifications
| # MFG | 7001-MC-007 |
| Assembled Reference Length (mm) | 180mm |
| Length of Cut (mm) | 120mm |
| Maximum Diameter (Decimal Inch) | 1.9924" |
| Maximum Diameter (mm) | 50.609mm |
| Minimum Diameter (Decimal Inch) | 1.5988" |
| Minimum Diameter (mm) | 40.61mm |
| Shank Diameter (mm) | 32.00mm |
| Series | 7001 |
| Shank Type | Cylindrical |
| Length Type | Short |
| Coolant | Central Coolant |
