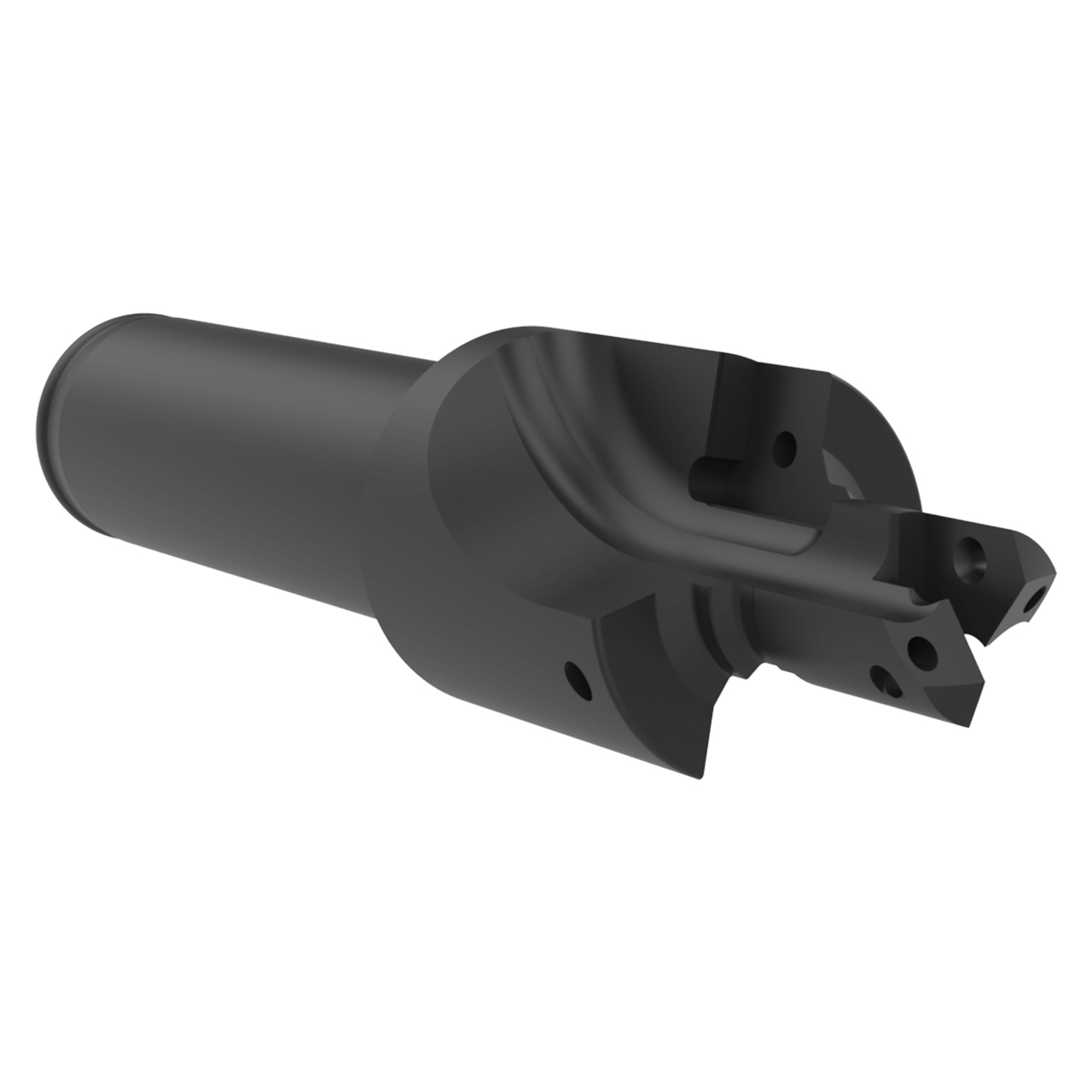

Allied Machine and Engineering AS5202-04Y-063F | -4 Size x 0.39" Diameter x 0.625" Shank x 3.51" OAL Y Series Indexable Porting Tool

$641.00
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE AS5202
Port Thread Size:
7/16-20 UNJF-3B
Tube Dash Number:
-4
Pilot Diameter (Inch):
25/64"
Pilot Diameter (Decimal Inch):
0.3900"
Pilot Diameter (mm):
9.90mm
Spotface Diameter (Inch):
7/8"
Spotface Diameter (Decimal Inch):
0.8750"
Spotface Diameter (mm):
22.23mm
Pilot Length (Inch):
21/32"
Pilot Length (Decimal Inch):
0.6610"
Pilot Length (mm):
16.79mm
interval quantity:
1
SKU:
23029484
UPC:
Weight:
0.26 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGAS5202-04Y-063F
Pilot Diameter (Inch)0.39"
Pilot Diameter (mm)9.9mm
Spotface Diameter (Inch)0.875"
Spotface Diameter (mm)22.23mm
Shank Diameter (Inch)0.625"
Shank Diameter (mm)15.88mm
Seal Angle Diameter (Inch)0.564"
Seal Angle Diameter (mm)14.34mm
Overall Length (Inch)3.51"
Overall Length (mm)89.2mm
Pilot Length (Inch)1.875"
Pilot Length (mm)47.63mm
Shank Length (Inch)0.896"
Shank Length (mm)22.76mm
Seal Angle60 Degree
Spotface to Shoulder Length (mm)22.76mm
Seal Angle60 Degree
SeriesY
Tube Size-4
Port StandardSAE AS5202
Port Thread Size7/16-20 UNJF-3B
Shank TypeCylindrical
Pipe Tap Rear (Inch)1/16"
