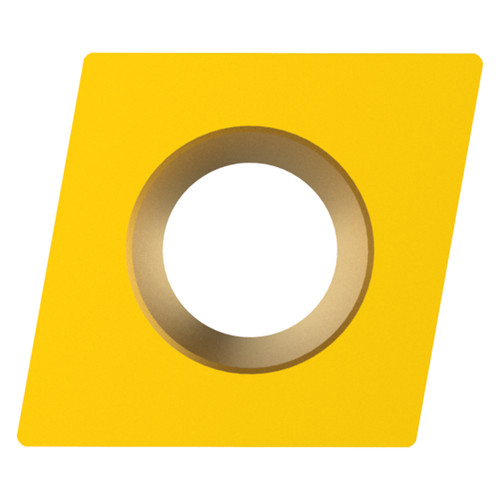

Allied Machine and Engineering CCMT060204 | 0.250" Size x 0.016" Corner Radius Carbide Boring Insert

$12.20
Brand:
Allied Machine and Engineering
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.40mm
interval quantity:
10
SKU:
55027913
UPC:
Weight:
0.06 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Allied Criterion boring systems are a complete solution for precision holemaking requirements. One can create a specialized assembly to meet application requirements using the large selection of standard components.

Features:

  • Meets or exceeds ANSI/ISO standards
  • Selected especially for boring applications
  • C-2 for non-ferrous materials and C-6 for ferrous applications

Product Specifications
# MFGCCMT060204
Corner radius (Inch)0.016"
Corner radius (mm)0.4mm
IC Size (Inch)0.250"
IC Size (mm)6.35mm
MaterialCarbide
