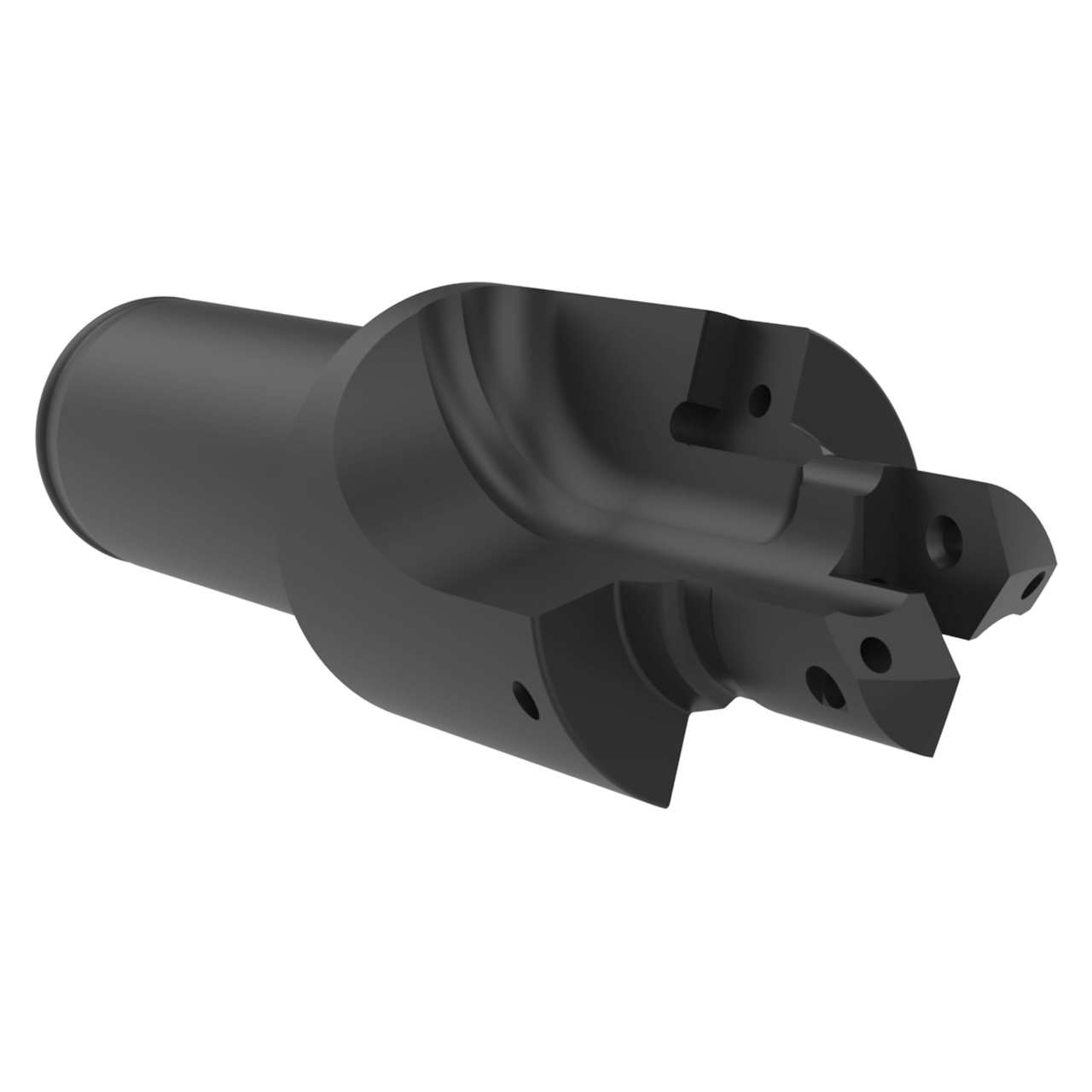

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | G1731-060-20FM |
| Pilot Diameter (Inch) | 0.571" |
| Pilot Diameter (mm) | 14.5mm |
| Spotface Diameter (Inch) | 1.142" |
| Spotface Diameter (mm) | 29mm |
| Shank Diameter (Inch) | 0.787" |
| Shank Diameter (mm) | 20mm |
| Seal Angle Diameter (Inch) | 0.705" |
| Seal Angle Diameter (mm) | 17.9mm |
| Overall Length (Inch) | 3.63" |
| Overall Length (mm) | 92.2mm |
| Seal Angle Length (Inch) | 0.104" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.748" |
| Pilot Length (mm) | 19mm |
| Shank Length (Inch) | 1.65" |
| Shank Length (mm) | 41.9mm |
| Spotface to Shoulder Length (Inch) | 1.117" |
| Spotface to Shoulder Length (mm) | 28.4mm |
| Seal Angle | 15 Degree |
| Series | 0 |
| Tube Size | -6 |
| Port Standard | JDS-G173.1 |
| Port Thread Size | M16 X 1.5 |
| Shank Type | Cylindrical |
