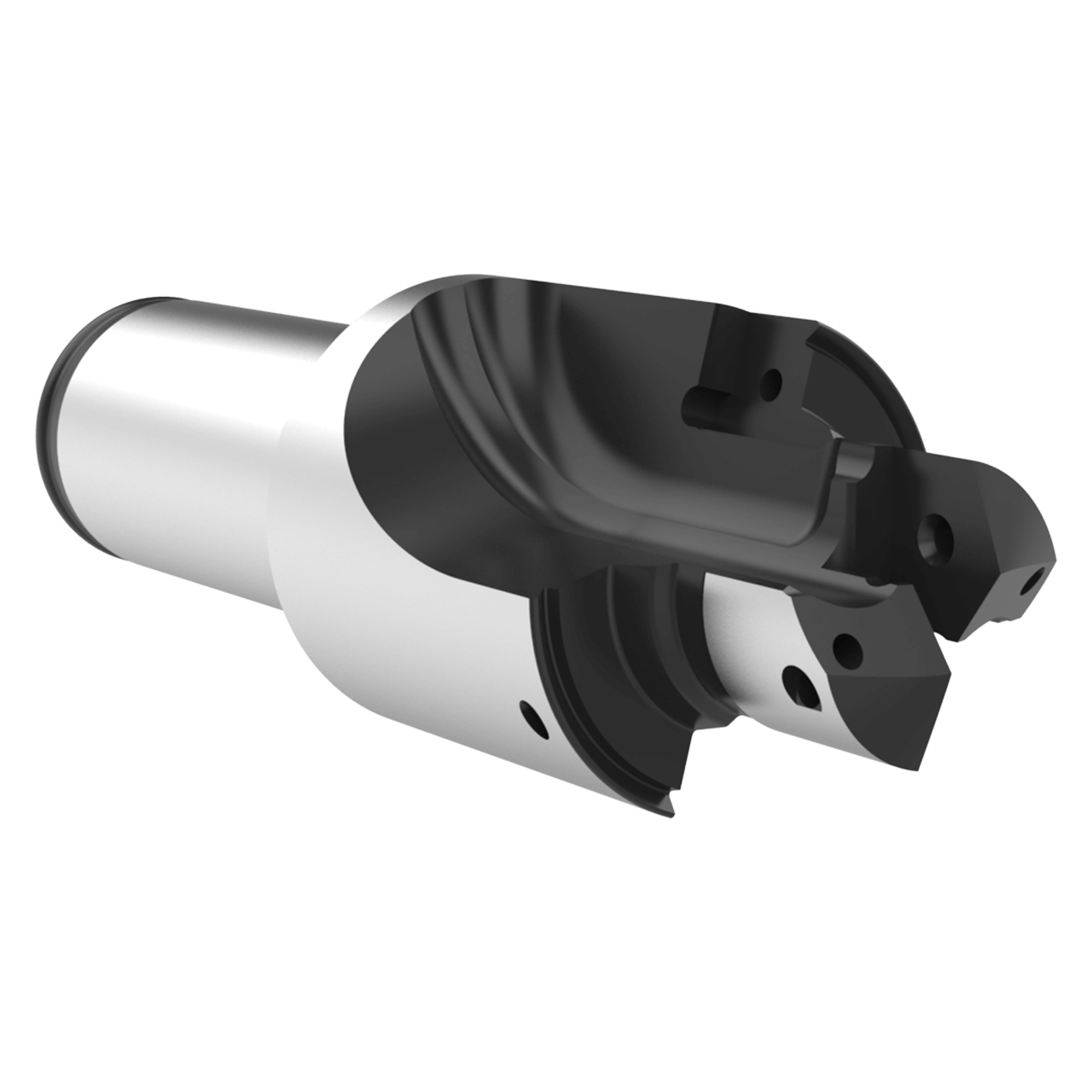

Allied Machine and Engineering I6149-08R0-20FM | -8 Size x 0.65" Diameter x 0.787" Shank x 3.63" OAL 0.5 Series Indexable Porting Tool

$613.00
Brand:
Allied Machine and Engineering
Port Standard Designation:
ISO 6149
Port Thread Size:
M18 X 1.5
Tube Dash Number:
-8
Pilot Diameter (Inch):
21/32"
Pilot Diameter (Decimal Inch):
0.6500"
Pilot Diameter (mm):
16.50mm
Spotface Diameter (Inch):
1-3/16"
Spotface Diameter (Decimal Inch):
1.1810"
Spotface Diameter (mm):
30.00mm
Pilot Length (Inch):
43/64"
Pilot Length (Decimal Inch):
0.6740"
Pilot Length (mm):
17.10mm
interval quantity:
1
SKU:
23029311
UPC:
Weight:
0.46 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGI6149-08R0-20FM
Pilot Diameter (Inch)0.65"
Pilot Diameter (mm)16.5mm
Spotface Diameter (Inch)1.181"
Spotface Diameter (mm)30mm
Shank Diameter (Inch)0.787"
Shank Diameter (mm)20mm
Seal Angle Diameter (Inch)0.781"
Seal Angle Diameter (mm)19.8mm
Overall Length (Inch)3.63"
Overall Length (mm)92.2mm
Seal Angle Length (Inch)0.102"
Seal Angle Length (mm)3.5mm
Pilot Length (Inch)0.674"
Pilot Length (mm)17.1mm
Shank Length (Inch)1.65"
Shank Length (mm)41.9mm
Spotface to Shoulder Length (Inch)1.164"
Spotface to Shoulder Length (mm)29.6mm
Seal Angle15 Degree
Series0.5
Tube Size-8
Port StandardISO 6149
Port Thread SizeM18 X 1.5
Shank TypeCylindrical

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
