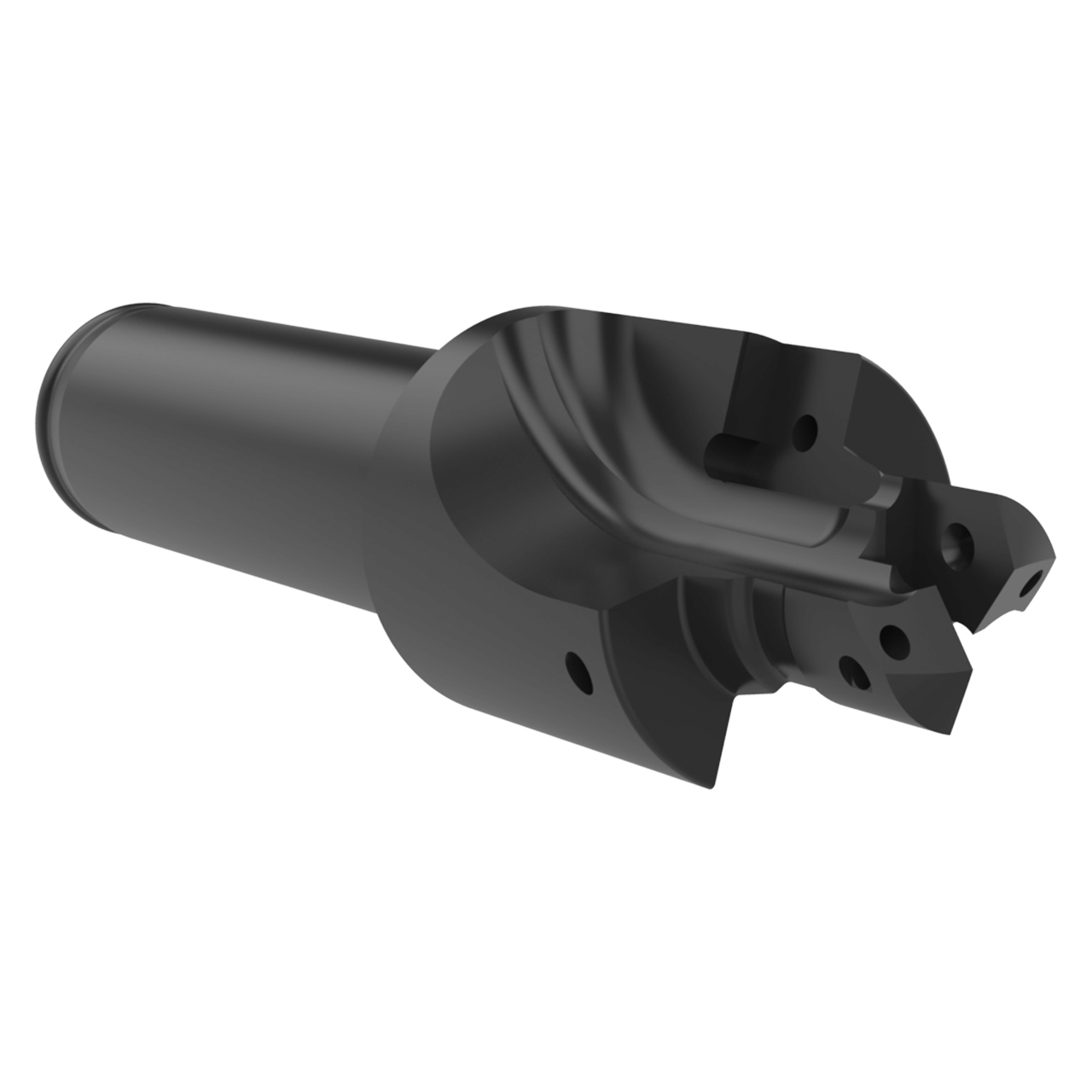

Allied Machine and Engineering J1926-05Z-16FM | -5 Size x 0.453" Diameter x 0.63" Shank x 3.18" OAL Z Series Indexable Porting Tool

$576.00
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE J-1926
Port Thread Size:
1/2-20 UNF-2B
Tube Dash Number:
-5
Pilot Diameter (Inch):
29/64"
Pilot Diameter (Decimal Inch):
0.4530"
Pilot Diameter (mm):
11.50mm
Spotface Diameter (Inch):
59/64"
Spotface Diameter (Decimal Inch):
0.9260"
Spotface Diameter (mm):
23.50mm
Pilot Length (Inch):
35/64"
Pilot Length (Decimal Inch):
0.5510"
Pilot Length (mm):
14.00mm
interval quantity:
1
SKU:
23029270
UPC:
Weight:
0.24 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGJ1926-05Z-16FM
Pilot Diameter (Inch)0.453"
Pilot Diameter (mm)11.5mm
Spotface Diameter (Inch)0.926"
Spotface Diameter (mm)23.5mm
Shank Diameter (Inch)0.63"
Shank Diameter (mm)16mm
Seal Angle Diameter (Inch)0.553"
Seal Angle Diameter (mm)14.1mm
Overall Length (Inch)3.18"
Overall Length (mm)80.7mm
Seal Angle Length (Inch)0.106"
Seal Angle Length (mm)3.5mm
Pilot Length (Inch)0.551"
Pilot Length (mm)14mm
Shank Length (Inch)1.65"
Shank Length (mm)41.9mm
Spotface to Shoulder Length (Inch)0.885"
Spotface to Shoulder Length (mm)22.5mm
Seal Angle12 Degree
SeriesZ
Tube Size-5
Port StandardSAE J-1926
Port Thread Size1/2-20 UNF-2B
Shank TypeCylindrical
