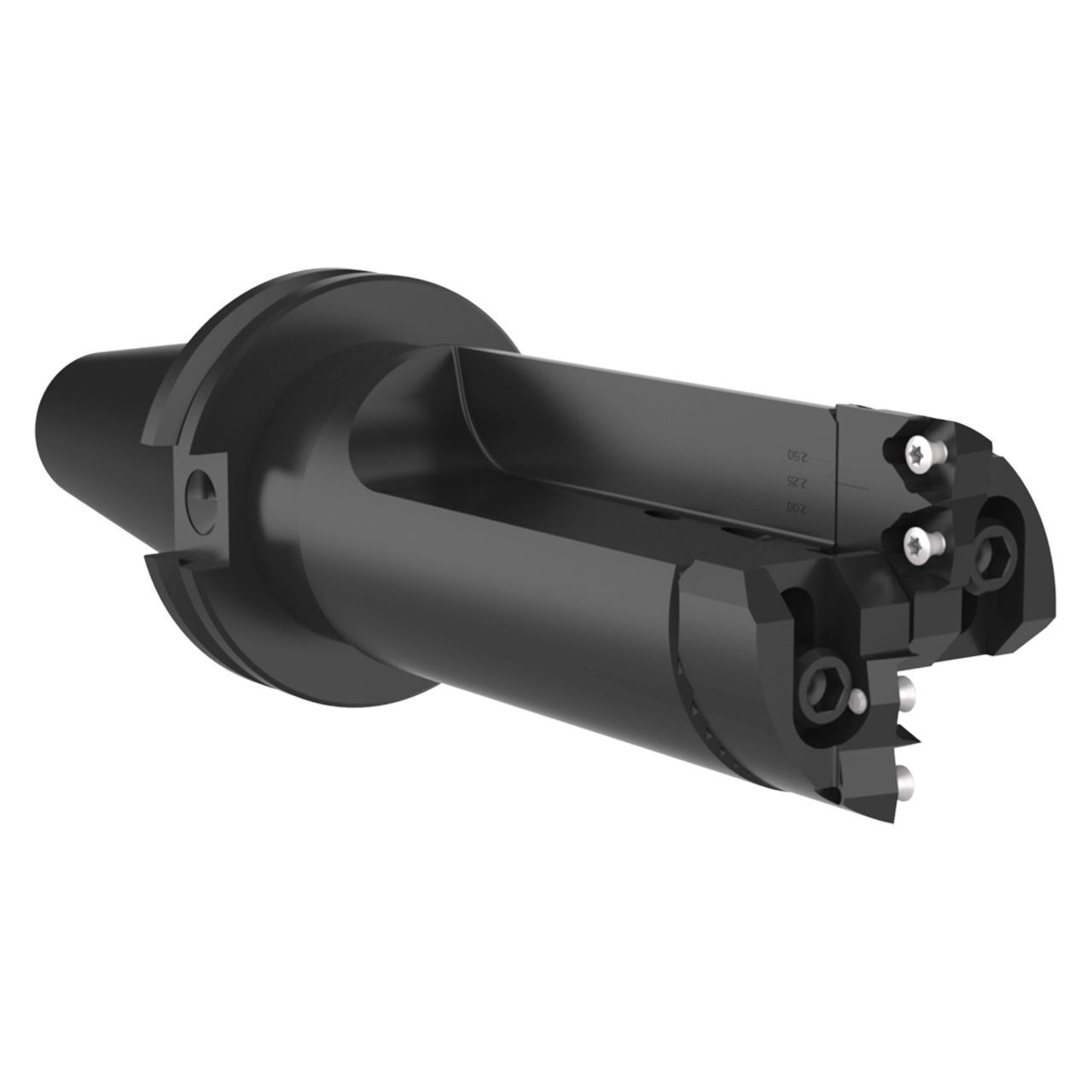

Allied Machine and Engineering OP1-1S-CV40 | 2.500" Diameter x 3-9/32" Drill Depth CV 40 OP1 Indexable Insert Drill

$1,247.00 $1,184.65
(You save $62.35)
Brand:
Allied Machine and Engineering
Drill Diameter (Inch):
2"
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
3-9/32"
Maximum Drill Depth (Decimal Inch):
3.2800"
Maximum Drill Depth (mm):
83.34mm
Shank Type:
CV 40
Through Coolant:
Yes
interval quantity:
1
SKU:
23036755
UPC:
Weight:
4.18 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Opening Drill is an extremely effective tool designed to enlarge existing holes.

Features:

  • Cartridges can be easily replaced to protect the drill body investment
  • Replaceable cartridges mean less downtime in the event of a tool crash
  • Cartridges use the same insert in all pockets lowering inventory levels

Product Specifications
# MFGOP1-1S-CV40
Drill Depth (Inch)3-9/32"
Gage Length (Inch)5-27/64"
Maximum Diameter (Inch)2.500"
Minimum Diameter (Inch)2.000"
Quantity of Inserts4
Shank TypeCV 40
Flute TypeStraight
Length TypeShort
SeriesOP1
Insert PrefixOP-05T308
