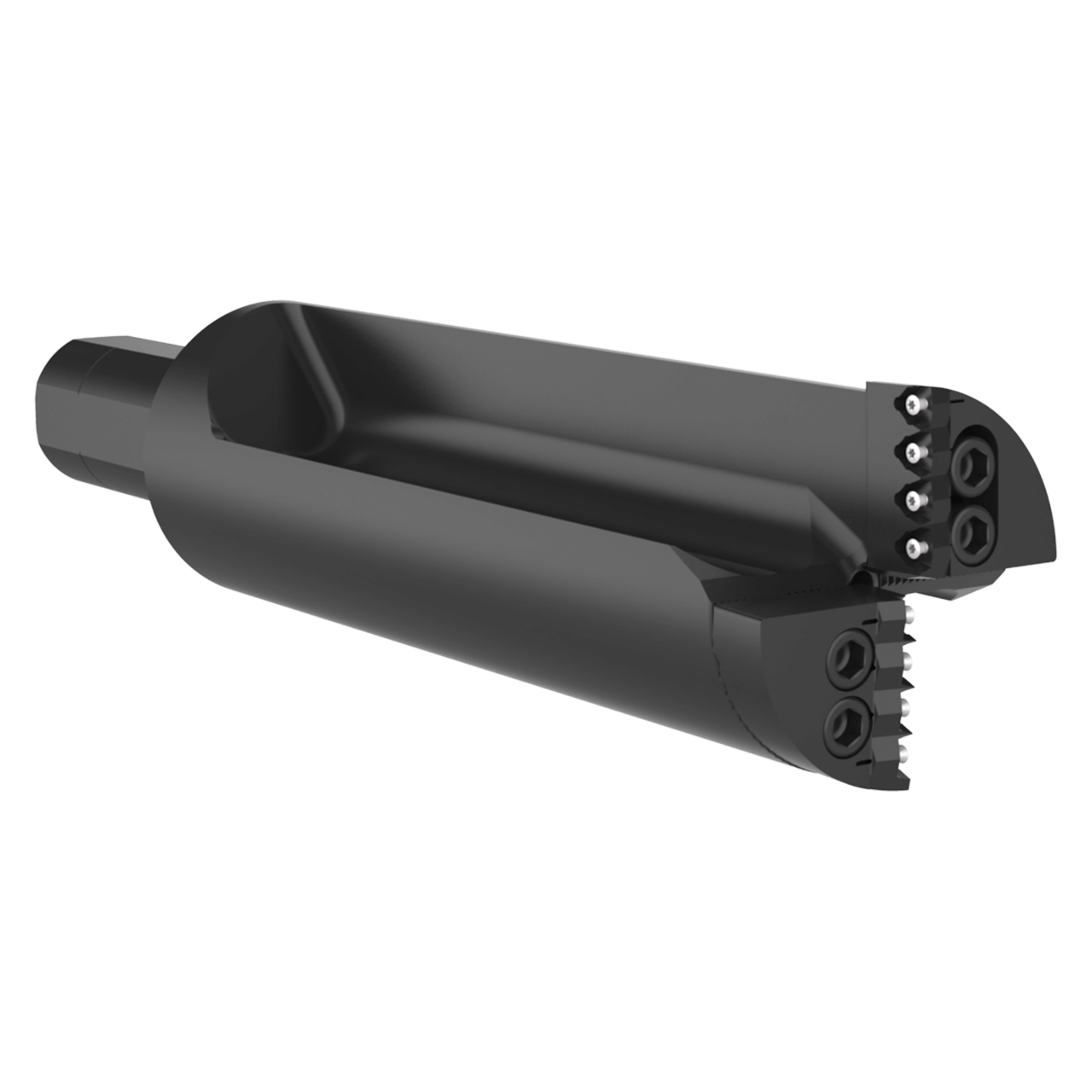

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | R56X25-200L |
| Drill depth (Inch) | 9-3/8" |
| Maximum Diameter (Inch) | 3.800" |
| Minimum Diameter (Inch) | 3.60" |
| Shank Diameter (Inch) | 2" |
| Length Type | 2.5 X D |
| Overall Length (Inch) | 15-3/4" |
| Series | R56 |
| Quantity of Inserts | 8 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
| Pipe tap rear (Inch) | 1/4 NPT |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
R56
Drill Diameter (Inch):
3-51/64"
Drill Diameter (Decimal Inch):
3.8000"
Drill Diameter (mm):
96.52mm
Maximum Drill Depth (Inch):
9-3/8"
Maximum Drill Depth (Decimal Inch):
9.3750"
Maximum Drill Depth (mm):
238.12mm
Shank Type:
Straight
Shank Diameter (Inch):
2"
Shank Diameter (Decimal Inch):
2.0000"
Shank Diameter (mm):
50.80mm
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.5 X D
