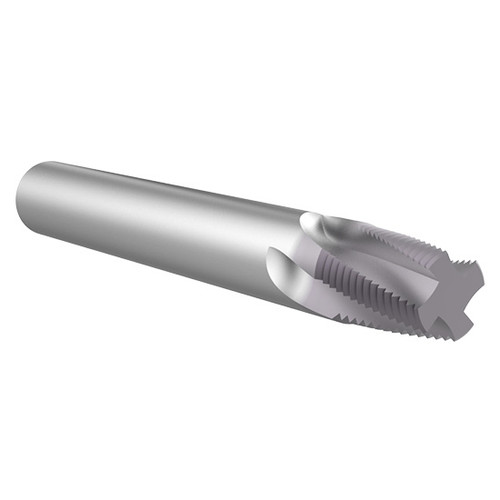

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 14
- Thread Form : BSPP
Product Specifications
| #MFG | TM14BSPP |
| Thread Size (Inch) | 1/2" and 3/4" |
| Thread Size (Decimal Inch) | 0.5000" and 0.7500" |
| Thread Size (mm) | 12.70mm and 19.05mm |
| Cutter Diameter (Inch) | 15/32" |
| Cutter Diameter (Decimal Inch) | 0.4700" |
| Cutter Diameter (mm) | 10.90mm |
| Pitch (Inch) | 35/64" |
| Pitch (Decimal Inch) | 0.5500" |
| Pitch (mm) | 14.00mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 1-9/64" |
| Length of Cut (Decimal Inch) | 1.1430" |
| Length of Cut (mm) | 29.03mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
