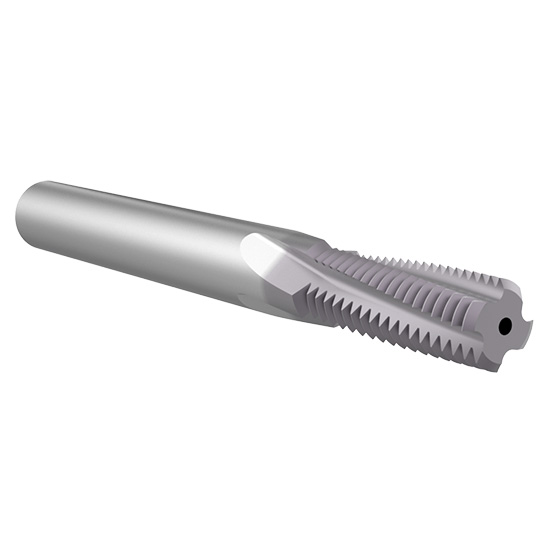

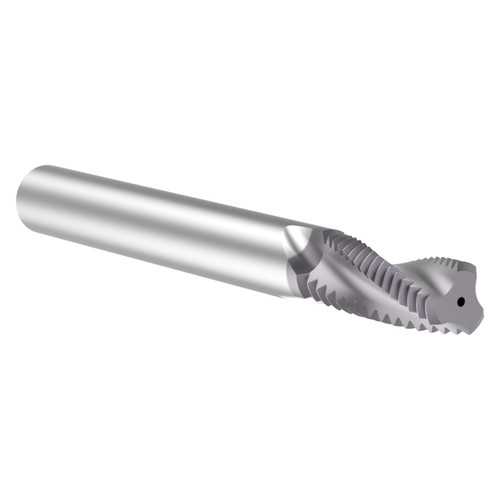

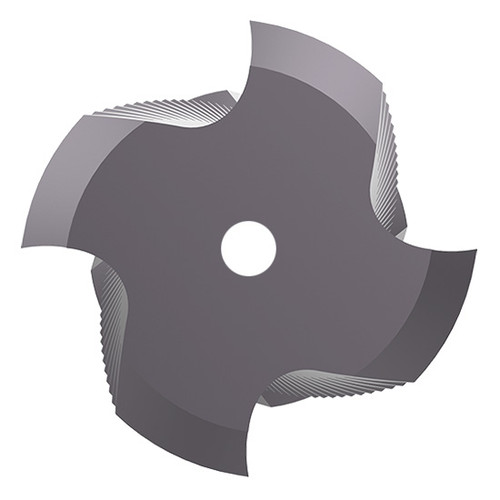

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 24
- Thread Form : UN
Product Specifications
| #MFG | TM31224CH |
| Thread Size (Inch) | 5/16" |
| Thread Size (Decimal Inch) | 0.3125" |
| Thread Size (mm) | 7.94mm |
| Cutter Diameter (Inch) | 15/64" |
| Cutter Diameter (Decimal Inch) | 0.2350" |
| Cutter Diameter (mm) | 5.97mm |
| Pitch (Inch) | 15/16" |
| Pitch (Decimal Inch) | 0.9400" |
| Pitch (mm) | 24.00mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
5/16"
Thread Size (Decimal Inch):
0.3125"
Thread Size (mm):
7.94mm
Thread Type:
Internal/External
Pitch (Inch):
15/16"
Pitch (Decimal Inch):
0.9400"
Pitch (mm):
24.00mm
Cutter Diameter (Inch):
15/64"
Cutter Diameter (Decimal Inch):
0.2350"
Cutter Diameter (mm):
5.97mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant (yes/no):
Yes
