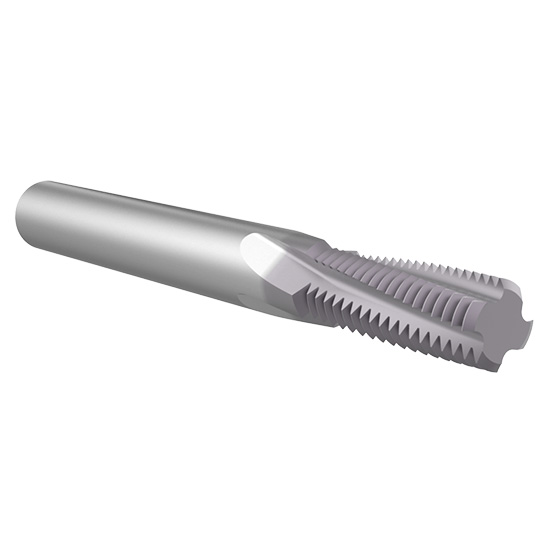

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- TPI : 7/8"-9
- Thread Form : UN
Product Specifications

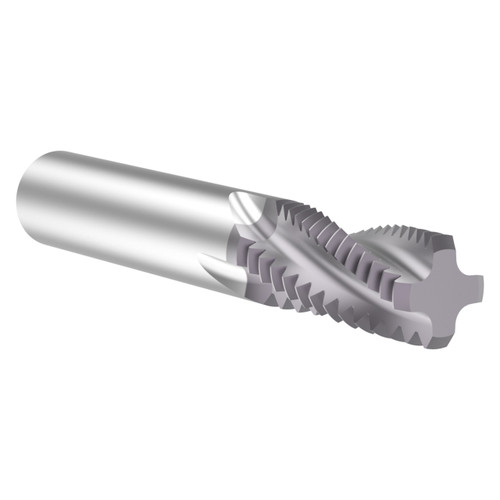

| #MFG | TM87509 |
| Thread Size (Inch) | 7/8" |
| Thread Size (Decimal Inch) | 0.8750" |
| Thread Size (mm) | 22.23mm |
| Cutter Diameter (Inch) | 5/8" |
| Cutter Diameter (Decimal Inch) | 0.6200" |
| Cutter Diameter (mm) | 5.90mm |
| Pitch (Inch) | 23/64" |
| Pitch (Decimal Inch) | 0.3500" |
| Pitch (mm) | 9.00mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (mm) | 34.93mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
