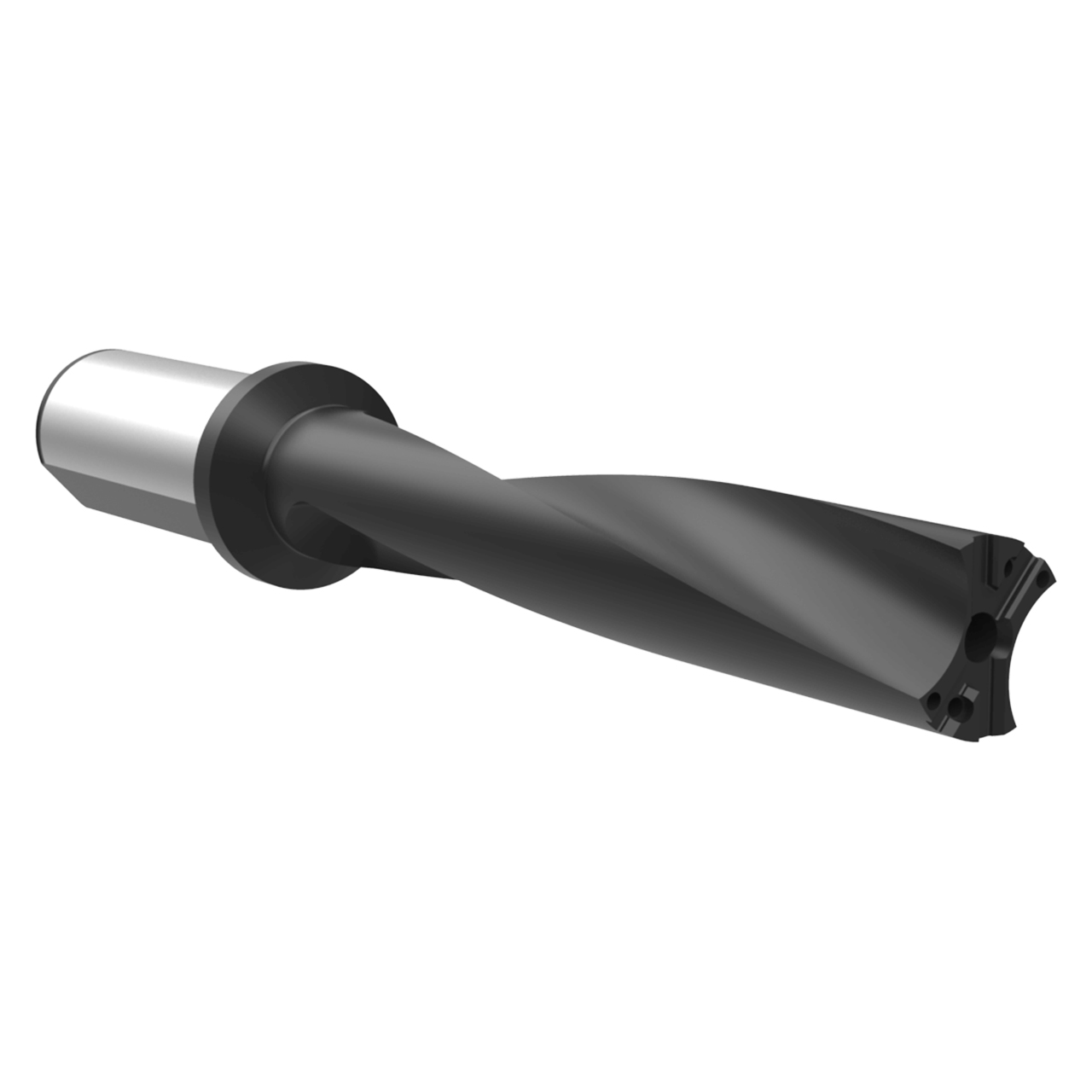

Allied Machine and Engineering W4405H-50FM | 50.99mm Diameter x 50.00mm Shank x 255.00mm Drill Depth 44 Series Flanged Indexable Drill Body

$880.00 $752.40
(You save $127.60)
interval quantity:
1
SKU:
23030598
UPC:
Weight:
7.39 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.

Features:

  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength

Product Specifications
# MFGW4405H-50FM
Assembled Overall Length (mm)398.8mm
Assembled Reference Length (mm)318.8mm
Drill Depth (mm)255mm
Maximum Diameter (Inch)2.0075"
Minimum Diameter (Inch)1.7323"
Minimum Diameter (mm)44.00mm
Shank Diameter (mm)50.00mm
Shank Length (mm)80mm
Series44
Shank TypeFlanged
Length Type5xØ
Coolant Inlet Style RearThrough the Shank
Flute TypeHelical
