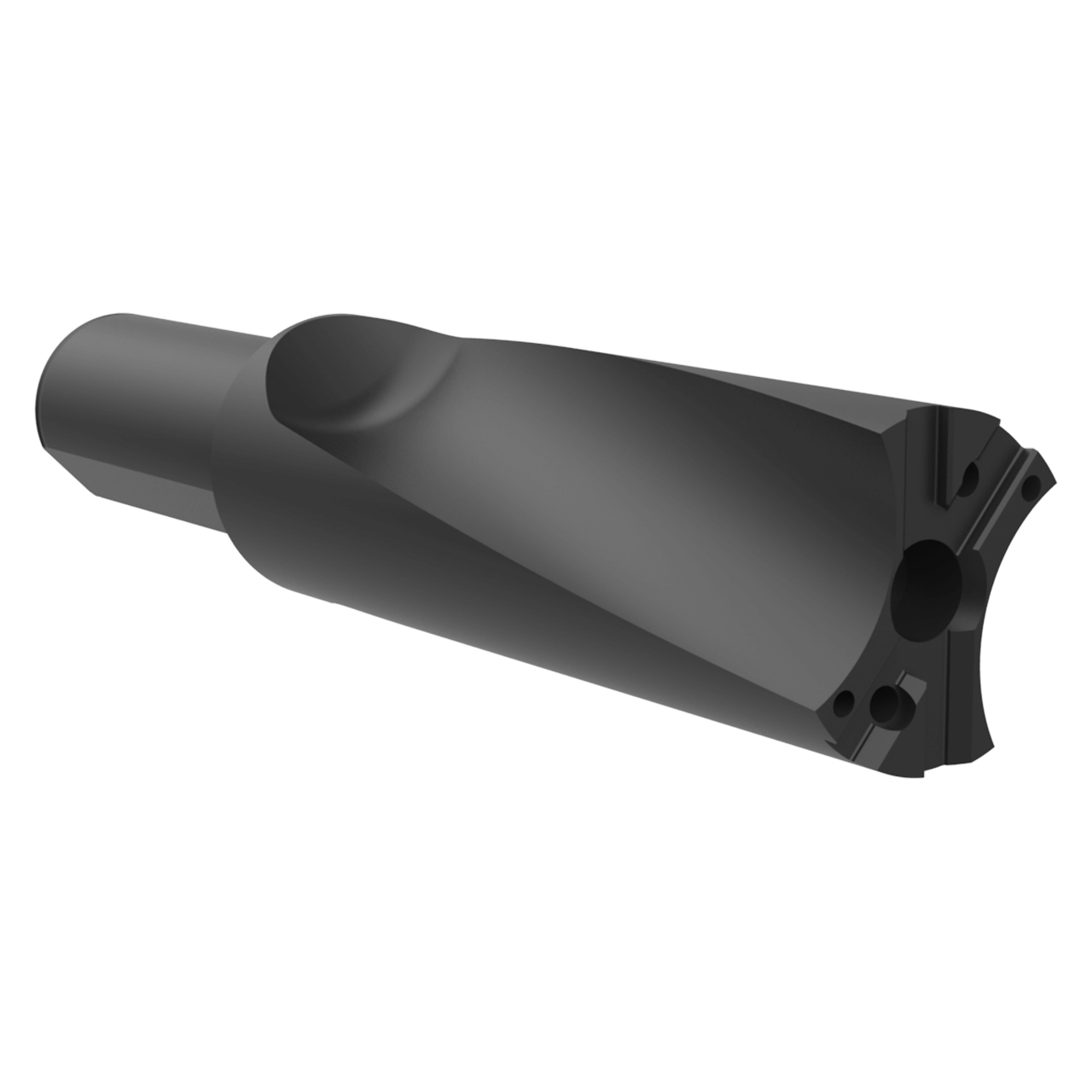

Allied Machine and Engineering W7003H-200F | 2.992" Diameter x 2.000" Shank x 8.750" Drill Depth 70 Series Flanged Indexable Drill Body

$1,219.00 $1,042.25
(You save $176.75)
interval quantity:
1
SKU:
23030547
UPC:
Weight:
12.38 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.

Features:

  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength

Product Specifications
# MFGW7003H-200F
Assembled Overall Length (Inch)15-3/32"
Assembled Reference Length (Inch)10-19/32"
Drill Depth (Inch)8-3/4"
Maximum Diameter (Inch)2.9917"
Maximum Diameter (mm)75.99mm
Minimum Diameter (Inch)2.7556"
Minimum Diameter (mm)70.00mm
Shank Diameter (Inch)2.000"
Shank Length (Inch)4-1/2"
Series70
Shank TypeFlanged
Length Type3xØ
Coolant Inlet Style RearThrough the Shank
Flute TypeHelical
