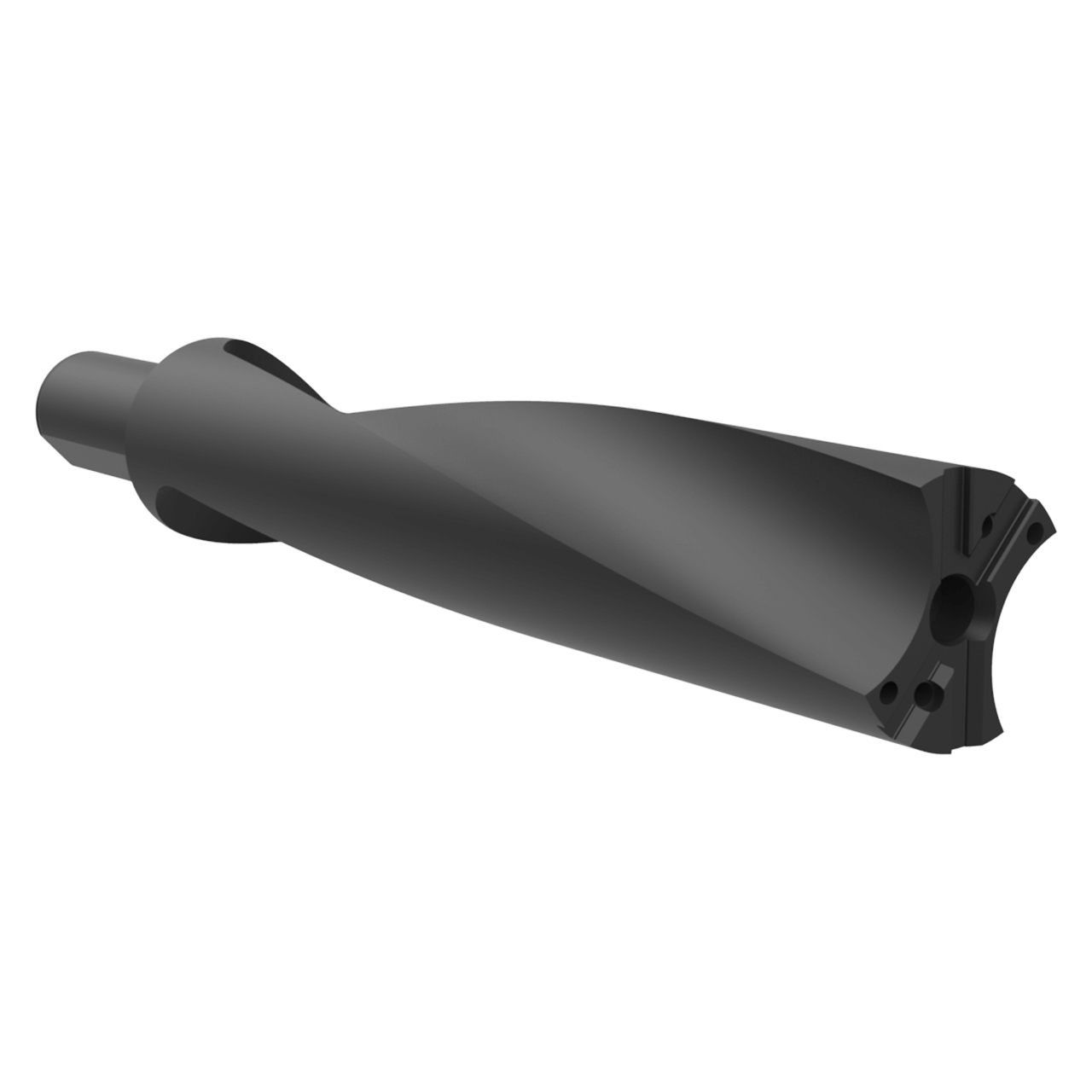

Allied Machine and Engineering W8305H-200F | 3.504" Diameter x 2.000" Shank x 17.500" Drill Depth 83 Series Flanged Indexable Drill Body

$1,627.00 $1,391.09
(You save $235.91)
interval quantity:
1
SKU:
23030523
UPC:
Weight:
27.28 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.

Features:

  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength

Product Specifications
# MFGW8305H-200F
Assembled Overall Length (Inch)23-13/16"
Assembled Reference Length (Inch)19-5/16"
Drill Depth (Inch)17-1/2"
Maximum Diameter (Inch)3.5035"
Maximum Diameter (mm)88.99mm
Minimum Diameter (Inch)3.2674"
Minimum Diameter (mm)83.00mm
Shank Diameter (Inch)2.000"
Shank Length (Inch)4-1/2"
Series83
Shank TypeFlanged
Length Type5xØ
Coolant Inlet Style RearThrough the Shank
Flute TypeHelical
