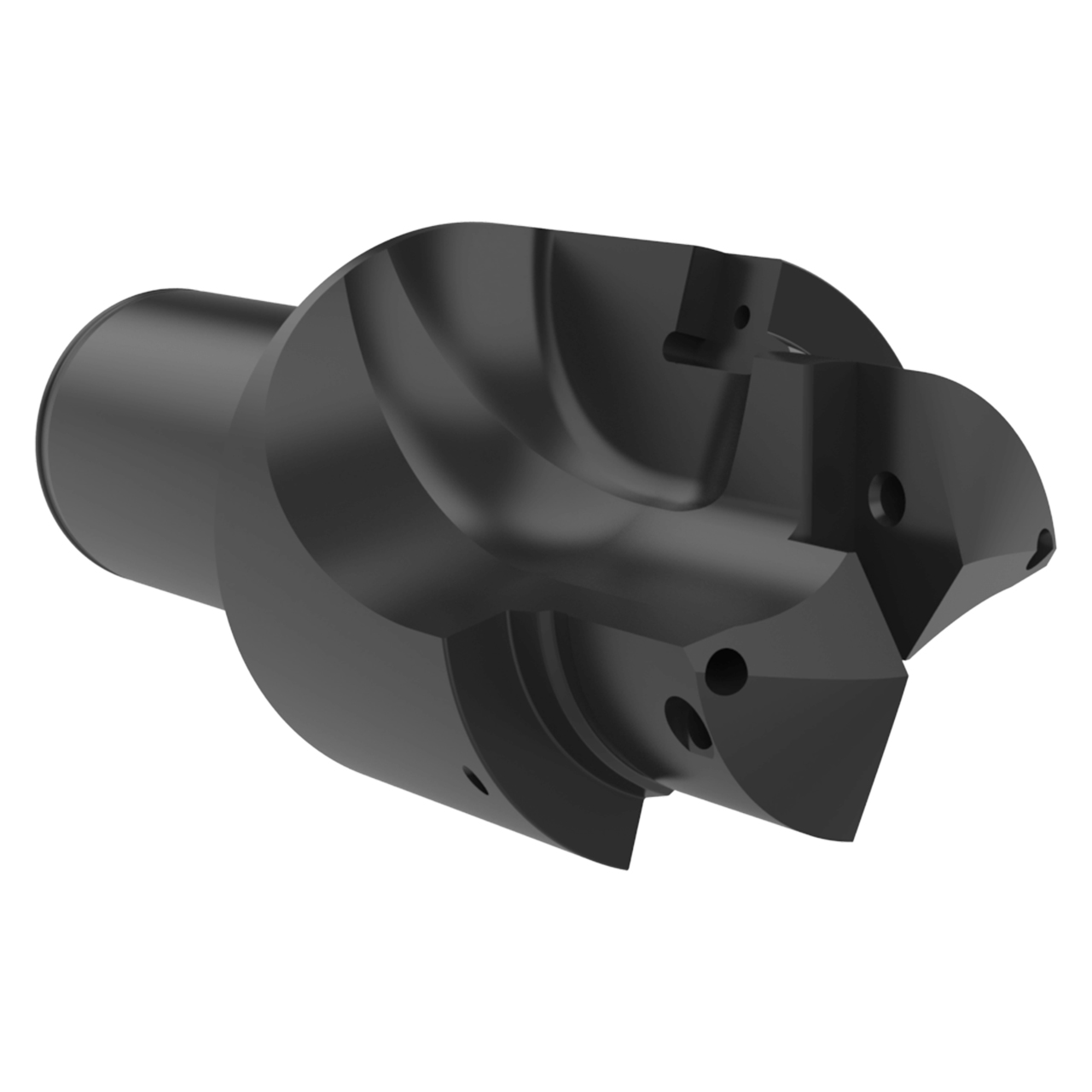

Allied Machine and Engineering X1926-243-150F | -24 Size x 1.791" Diameter x 1.5" Shank x 6" OAL 3 Series Indexable Porting Tool

$758.00
interval quantity:
1
SKU:
23029230
UPC:
Weight:
3.38 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGX1926-243-150F
Pilot Diameter (Inch)1.791"
Pilot Diameter (mm)45.5mm
Spotface Diameter (Inch)2.564"
Spotface Diameter (mm)65.1mm
Shank Diameter (Inch)1.5"
Shank Diameter (mm)38.1mm
Seal Angle Diameter (Inch)1.965"
Seal Angle Diameter (mm)49.9mm
Overall Length (Inch)6"
Overall Length (mm)152.4mm
Seal Angle Length (Inch)0.138"
Seal Angle Length (mm)3.5mm
Pilot Length (Inch)1.156"
Pilot Length (mm)29.3mm
Shank Length (Inch)2.688"
Shank Length (mm)68.3mm
Spotface to Shoulder Length (Inch)1.778"
Spotface to Shoulder Length (mm)45.2mm
Seal Angle15 Degree
Series3
Tube Size-24
Port StandardSAE J-1926
Port Thread Size1 7/8-12 UN-2B
Shank TypeCylindrical
Pipe Tap Rear (Inch)1/4"
