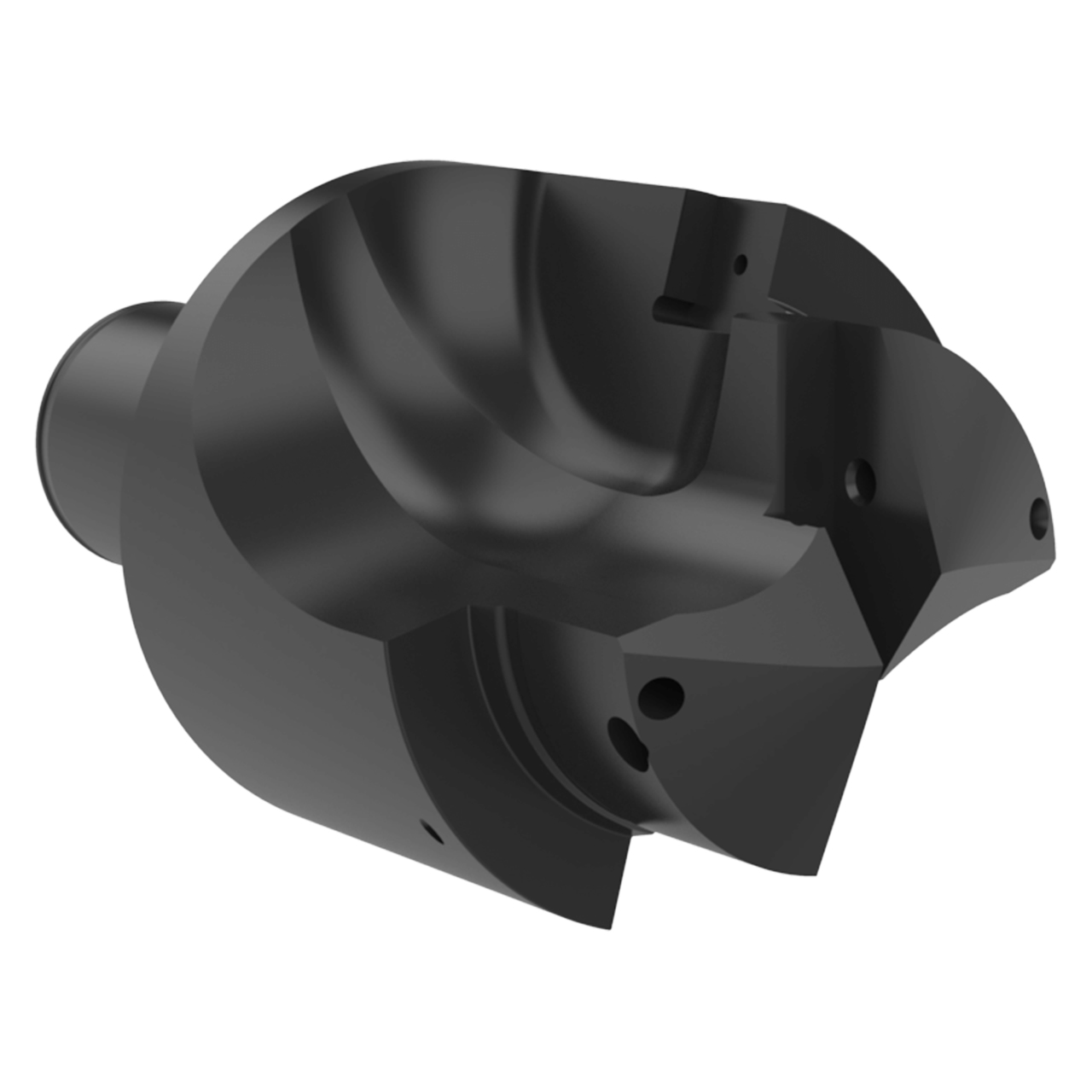

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | X1926-324-150F |
| Pilot Diameter (Inch) | 2.421" |
| Pilot Diameter (mm) | 61.5mm |
| Spotface Diameter (Inch) | 3.47" |
| Spotface Diameter (mm) | 88.1mm |
| Shank Diameter (Inch) | 1.5" |
| Shank Diameter (mm) | 38.1mm |
| Seal Angle Diameter (Inch) | 2.589" |
| Seal Angle Diameter (mm) | 65.8mm |
| Overall Length (Inch) | 6.75" |
| Overall Length (mm) | 171.4mm |
| Seal Angle Length (Inch) | 0.138" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 1.156" |
| Pilot Length (mm) | 29.3mm |
| Shank Length (Inch) | 2.688" |
| Shank Length (mm) | 68.3mm |
| Spotface to Shoulder Length (Inch) | 2.393" |
| Spotface to Shoulder Length (mm) | 60.8mm |
| Seal Angle | 15 Degree |
| Series | 4 |
| Tube Size | -32 |
| Port Standard | SAE J-1926 |
| Port Thread Size | 2 1/2-12 UN-2B |
| Shank Type | Cylindrical |
| Pipe Tap Rear (Inch) | 1/4" |
