Features

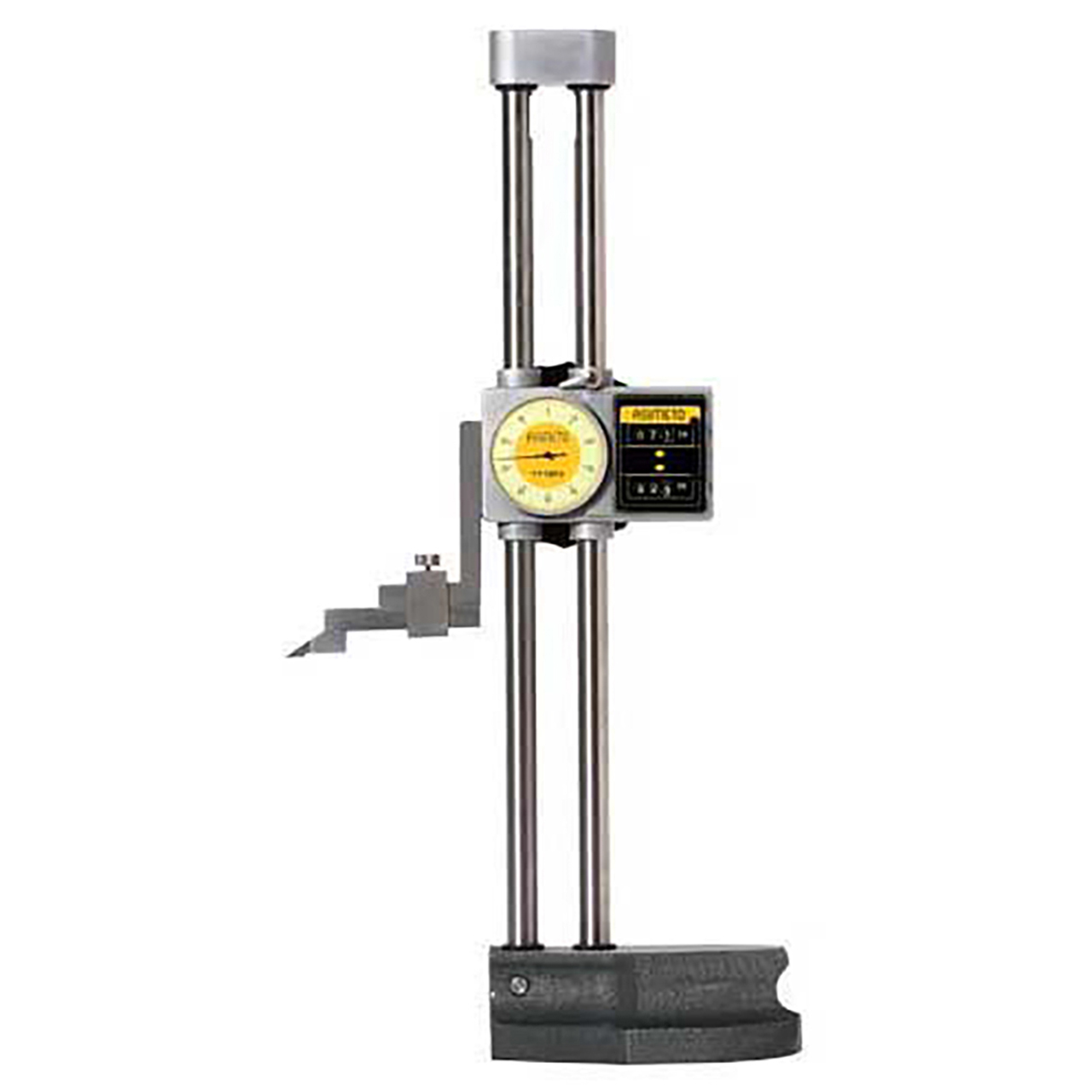

- Position is displayed by a combination of the digit counter and the dial
- Hand wheel design for both coarse and fine adjustments
- Digit counter graduation: 0.1"/1mm
- The digit counters provide bi-directional positioning and the capability of setting zero at any position
- Carbide tipped scriber with clamp, Warranty card, Instruction Manual
Product Specifications
| Manufacturer Part Number | 7623241 |
| Maximum Measurement (Inch) | 24" |
| Graduation (Decimal Inch) | 0.1 counter / 0.001 indicator |
| Graduation (mm) | 0.01mm |
| Data Output | No |
| Display Type | Digit Counter & Dial |
| Accuracy (Decimal Inch) | ±0.002" |
| Product Type | Dial Height Gage |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Asimeto
Maximum Measurement (Inch):
24"
Maximum Measurement (Decimal Inch):
24.0000"
Maximum Measurement (mm):
609.60mm
Graduation (mm):
0.01mm
Display Type:
Digit Counter & Dial
