Product Information

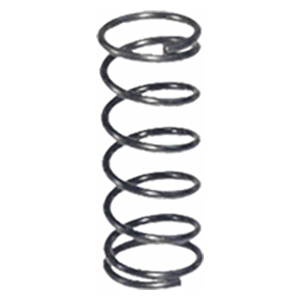

Sturdy spring that holds up a clamp strap for clear part loading. Available in steel to fit stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), and in stainless steel to fit stud sizes from #10-32 to 3/8-16 (M5 to M10 in metric).

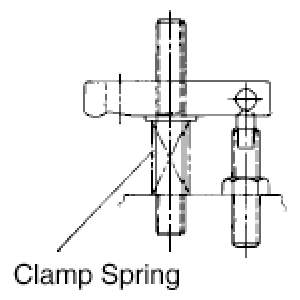

Application Information
Material
| Steel | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Clamp Springs | Spring Steel | - | Black Oxide | ✔ | ✔ |
| Stainless Steel | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Clamp Springs | 300-series stainless steel | - | - | ✔ | ✔ |

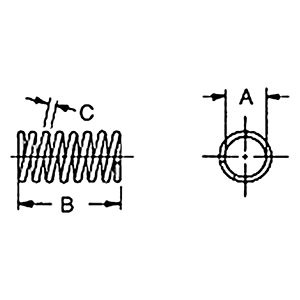

Parts Specification
| Part Number | FITS STUD SIZE | A DIA | B | C DIA | NUMBER OF COILS |
| CL-11-SPG-PACKOF5 | 5/8-11 or M16 | 11/16 | 1-3/4 | .091 | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
