Carr Lane CL-1214-00-CLSP | 1.250" Thickness Carr Lock Subplate

Carr Lock Subplates for HAAS Mini Mill

Carr Lock Subplates are precision-machined steel plates with Carr Lock Receiver Bushings installed in a standard pattern. These subplates serve as the foundation of an efficient quick-change fixturing system. Subplates should generally be large enough to cover most of the machine table, for maximum fixture flexibility, but should never extend beyond the machine table. For maximum quick-change benefits, subplates are usually left permanently on the machine table while only the mounted fixtures or vises are exchanged. Made in USA.

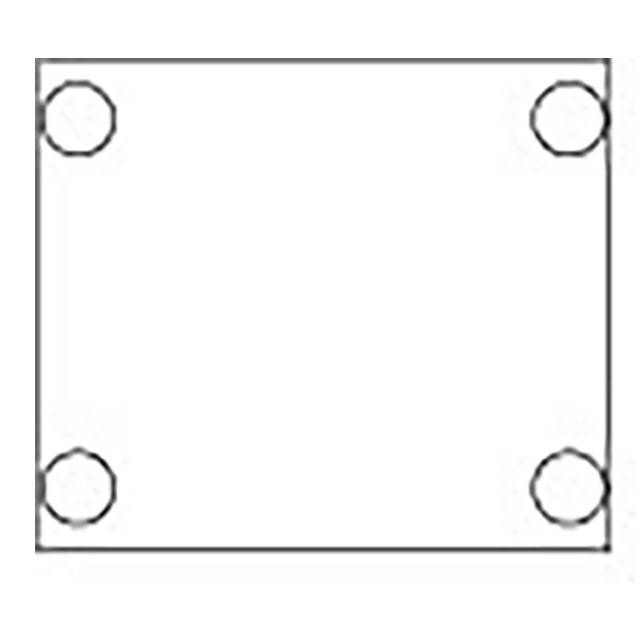

Application Information

Subplate with (1) 12x14 Fixture Plate

Accuracy

The Carr Lock System is extremely accurate. All Receiver-Bushing installation holes are located within +/-.0002" from their primary reference hole. Clamping repeatability is +/-.0005", while bushing concentricity is .0002" TIR. The resulting x/y-axis repeatability of a mounted fixture plate is +/-.0028" considering all tolerance accumulation.

Mounting

Two locating holes for Sure-Lock Fixture Keys are provided for alignment with a slotted machine table. Fasten to the machine using the four mounting slots, with Socket-Head Cap Screws and T Nuts to match the machine table.

Design Considerations

Never use a subplate that extends beyond the machine table on which it is mounted.

Material

Parts Specification
