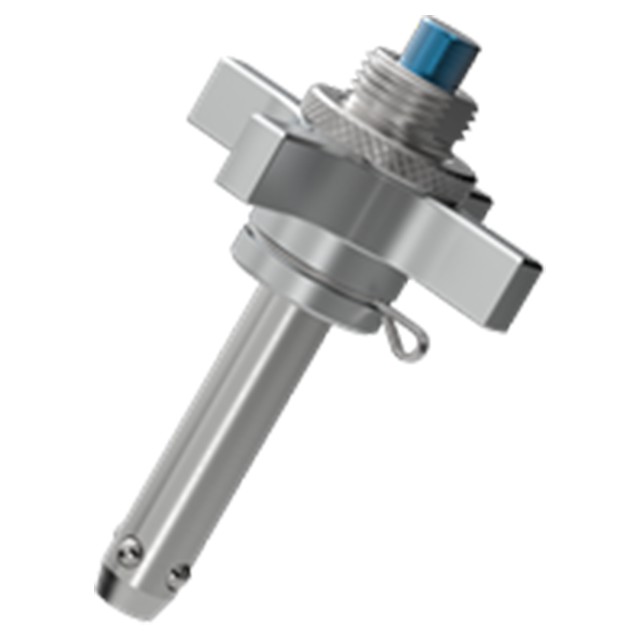

Carr Lane CL-16-ABPK-3.00-S | 1" Diameter x 3" Grip Length Knob Handle Ball Lock Pin

$132.46
Brand:
Carr Lane
Diameter (Decimal Inch):
1.0000"
Grip Length (mm):
76.20mm
Grip Length (Decimal Inch):
3.0000"
Grip Length (Inch):
3"
Diameter (Inch):
1"
Diameter (mm):
25.40mm
SKU:
50011914
Weight:
1.23 LBS
Shipping:
Free Shipping

Knob Handle

Adjustable Ball Lock Pins have an adjustable grip length. They can be used for clamping, or simply to provide a variable grip length. The threaded handle turns to provide a +/- 1/4" clamping range or adjustment range. When used just for variable grip length (not for clamping), the handle can be secured with the supplied knurled locknut. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Adjustable Ball Lock Pins have four balls as standard, instead of two, for more-distributed ball-pullout force in clamping applications.

Technical Information


Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Adjustable Ball Lock Pins can be used for clamping, or simply to provide a variable grip length.


Grip length adjusts +/- 1/4" from nominal.


Knob Handle

Adjustable Ball Lock Pins have four balls as standard, instead of two, for more-distributed ball-pullout force in clamping applications.

Option Cable

To order pins with a standard cable assembly attached (#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number.

Material

Stainless Steel
ItemMaterialHeat TreatFinishDFARSRoHS
Shank17-4PH Stainless SteelRc 40 minPassivatedYesYes
Spindle17-4PH Stainless Steel-PassivatedYesYes
T&L HandleAluminum Alloy-Black OxideYesYes
Knob Handle319 Aluminum Alloy-N/AYesYes
Head and Locknut300-Series Stainless Steel-PassivatedYesYes
ButtonAluminum Alloy-AnodizedYesYes
Spring17-7PH/302 Stainless Steel-N/AYesYes
Balls440C Stainless Steel-N/AYesYes


Parts Specification

A Diameter Nominal (Inch)A Diameter Actual (Inch)Grip Length (Inch)B (Inch)C (Inch)D Diameter (Inch)E (Inch)K (Inch)M Diameter (Inch)N (Inch)
1"0.9985/0.9970"3"1.217"0.875"0.71"2.34"1.63"4"0.75"
