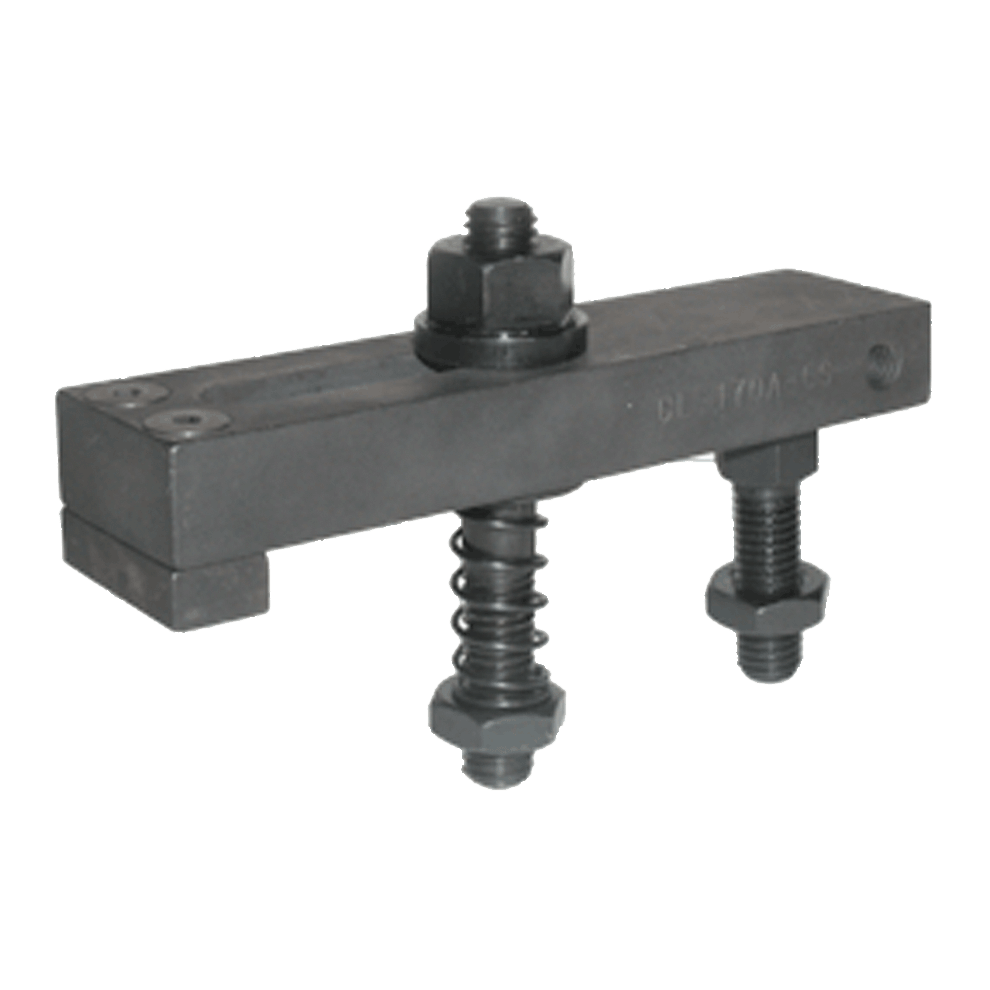

Carr Lane CL-170A-SHPA-1 | 1/2-13 Thread Slotted-Heel Padded Clamp Strap

$46.01
Brand:
Carr Lane
Thread:
1/2-13"
SKU:
50016792
UPC:
Weight:
2.19 LBS
Shipping:
Calculated at Checkout

Slotted-Heel Padded Clamp Strap Assembly

Slotted-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a slot underneath to slide straight back for clear loading. The tapped hole at the rear of each side allows installing a Finger Pin. Made in USA.

Clamping Pads

A steel Clamping Pad is furnished with each clamp strap.

Assembly with Spherical Nut & Washer (-1)

This clamp assembly includes a Slotted-Heel Padded Clamp Strap plus the following Items:

  • Spherical Nut & Washer
  • Clamping Stud
  • Clamp Spring
  • Flat Washer
  • Jam Nut
  • Clamp Rest

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Clamp Strap1018 SteelCarburized HardenedBlack OxideYesYes
Flat-Head Socket ScrewsSteel-Black OxideYesYes
Steel Clamping Pad1018 SteelCarburized HardenedBlack OxideYesYes
Plastic Clamping PadPlastic--YesYes
Brass Clamping PadBrass--YesYes

Parts Specification

A Thread (Inch)D (Inch)E (Inch)F (Inch)S (Inch)
1/2-13"6"7/8"2"2-7/8"
