Carr Lane CL-22-SPS-1 | #8-36 Thread Short Spring Plunger

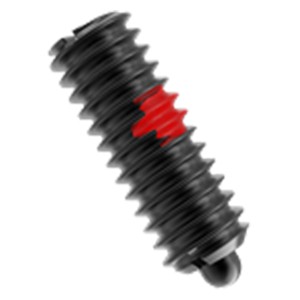

Product Information

Self-contained plunger-and-spring device available in many sizes and forces. Short Spring Plungers have a shorter overall length, and shorter stroke, than our standard Spring Plungers. The version shown here has a steel body and a hardened steel plunger nose. Available in thread sizes from #8-32 to 5/8-11 (M5 to M12 in metric), each with a choice of light or heavy spring force. Made in USA. Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). A thread-locking element holds the unit securely in place after installation.

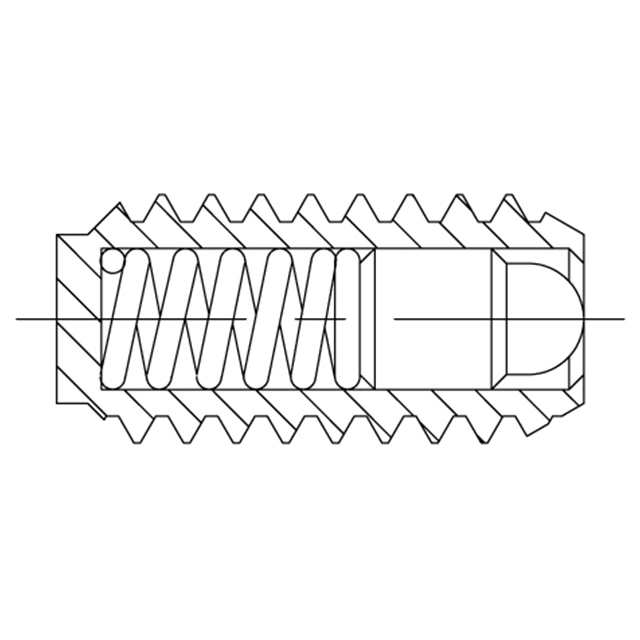

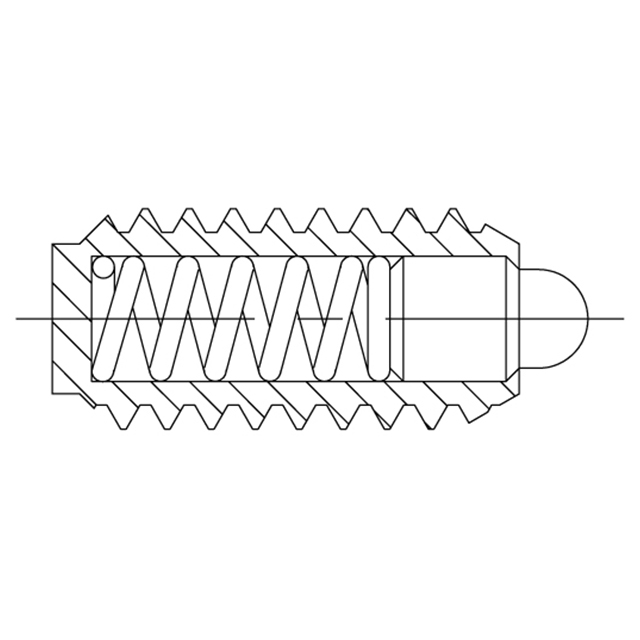

Internal View

Nose Extended Nose Retracted

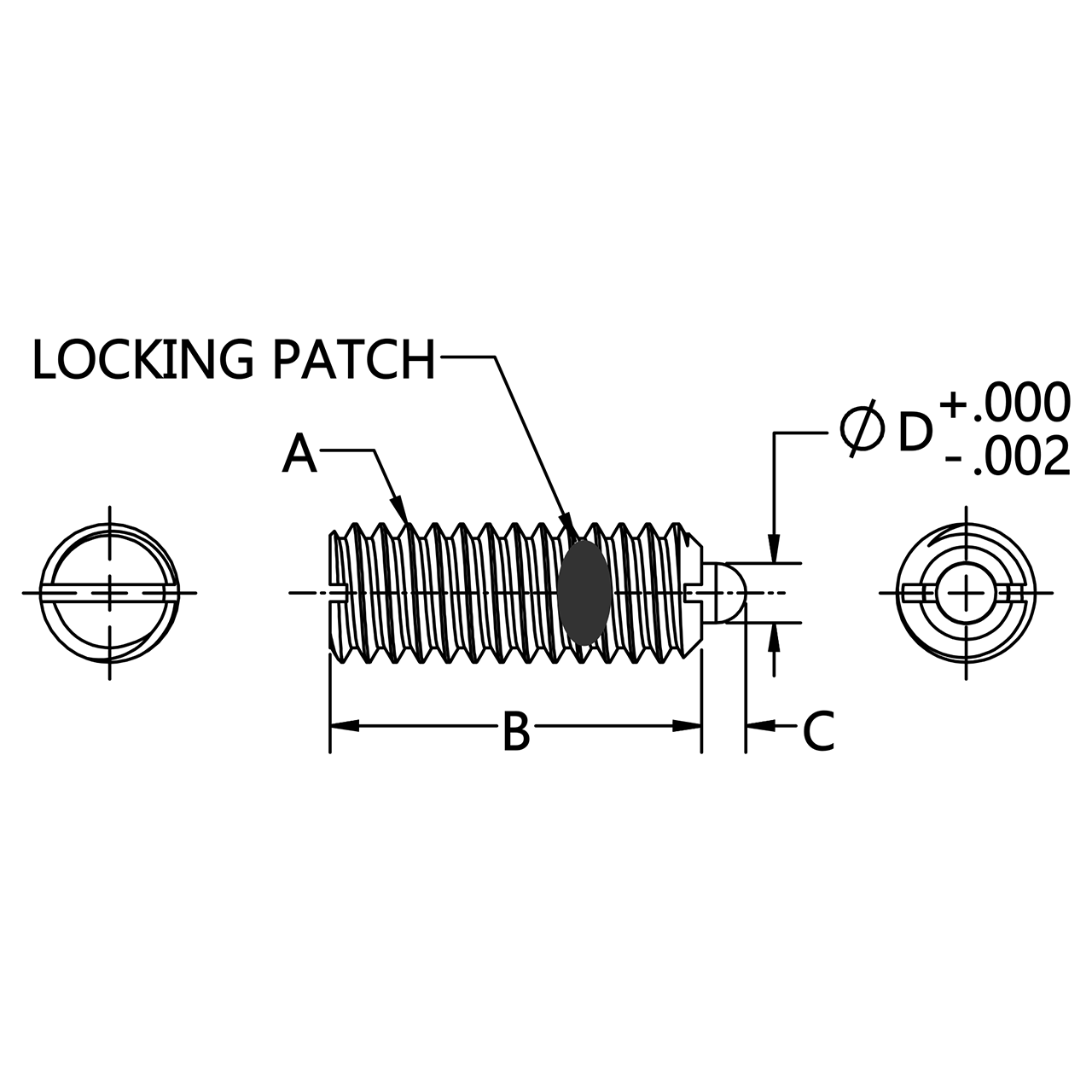

Material

Parts Specification
