Carr Lane CL-251-VTC | 200 lbs Hold Capacity Toggle Clamp

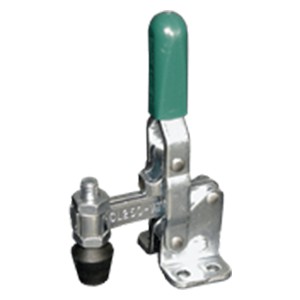

Product Information

CL-250-VTCFixed Open Arm, Flanged Base Small-yet-powerful clamp available in several configurations. Arm opens 117 Degree while handle moves 69 Degree. Choose either a fixed open arm for fixed spindle location, or a long open arm for adjustable spindle location. Choice of flanged base or straight base. Available in in steel or stainless steel. Optionally available with our safety-lock feature, and in an air-powered version (see Related Products below). 200 lbs holding capacity.

Videos

Toggle Clamps by Carr Lane Manufacturing Toggle clamps are versatile workholding products, providing efficiency, versatility, improved ergonomics and safety. Carr Lane Mfg.’s line of toggle clamps is cost-effective, reliable and are easy for any user to pick up and use. Within the Carr Lane Mfg. online catalog, you’ll find an exceptional collection of heavy duty toggle clamps including horizontal-handle toggle clamps, vertical handle toggle clamps, plunger-style toggle clamps, latch action toggle clamps, toggle pliers, air-powered toggle clamps and a complete line of toggle clamp accessories.

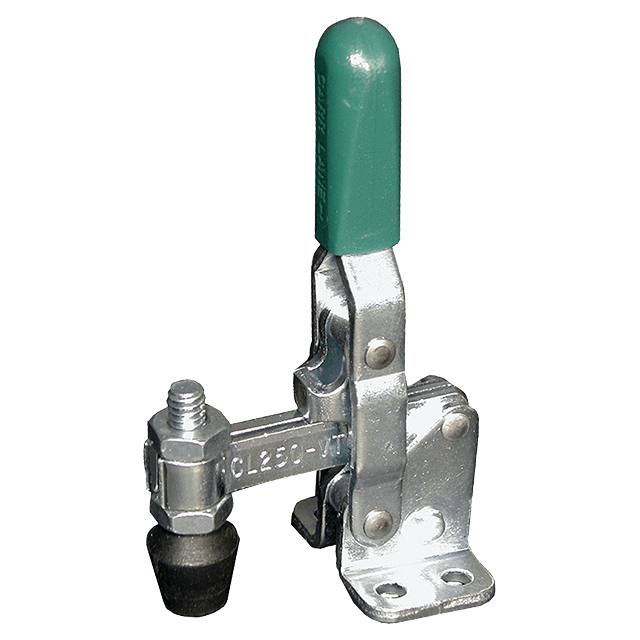

Models Available

CL-250-VTCFixed Open Arm, Flange Base Also CL-250-VTC-S in stainless steel CL-251-VTCFixed Open Arm, Straight Base CL-252-VTCFixed Open Arm, Straight Base, T Handle CL-253-VTCLong Open Arm, Flanged Base Also CL-253-VTC-S in stainless steel

Clamping Action

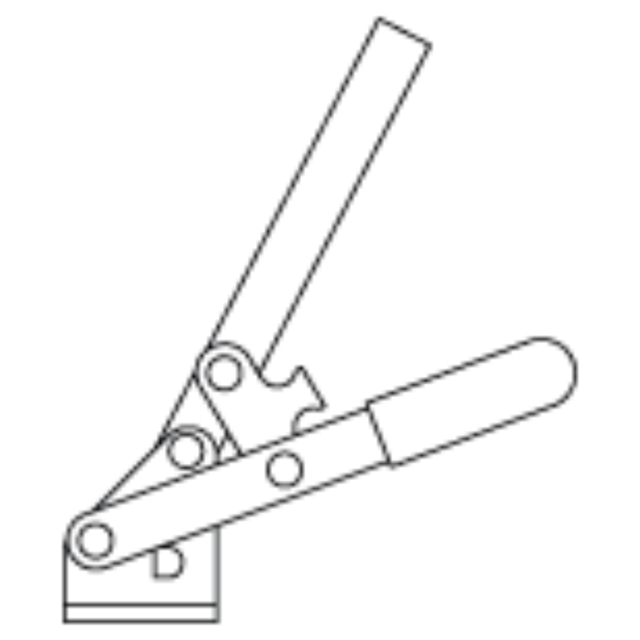

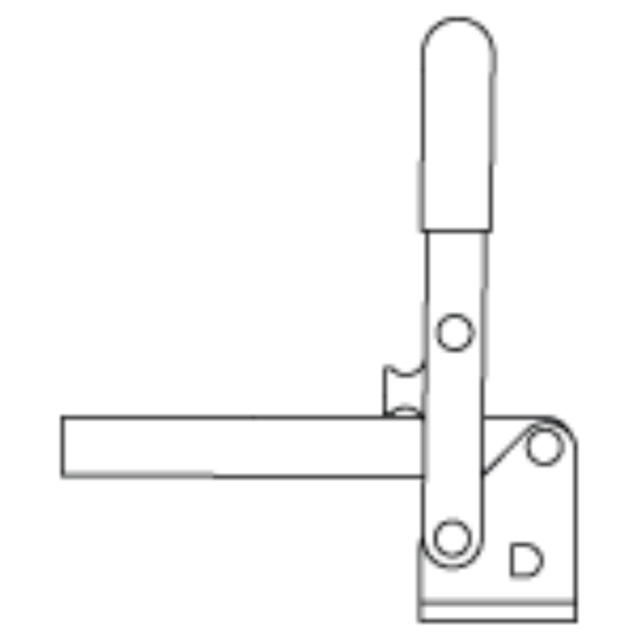

Clamped Position Open Position

Accessories

Steel clamps are supplied with 1/4-20 short flat-cushion spindle CL-14112-FC. The long-open-arm version is additionally supplied with (2) CL-148-TW flanged washers. Stainless steel clamps are supplied with 1/4-20 stainless hex-head spindle CL-14112-SA-S. The long-open-arm version is additionally supplied with (2) CL-148-TW-S stainless flanged washers. For alternative clamping spindles, see Related Products below.

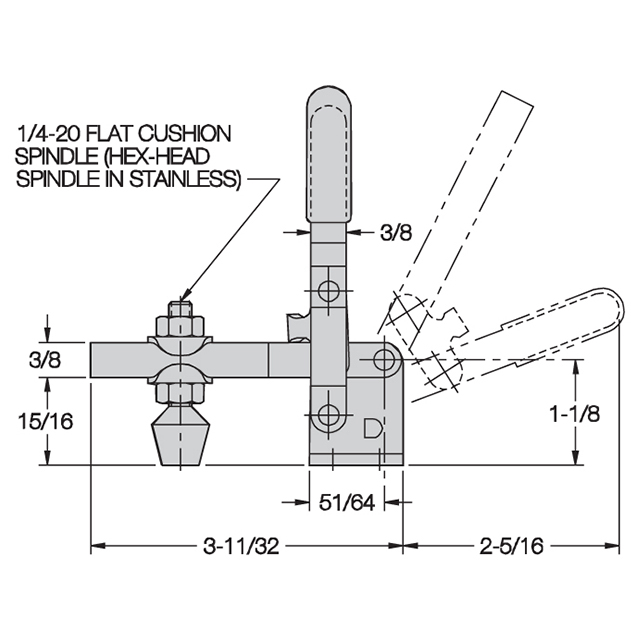

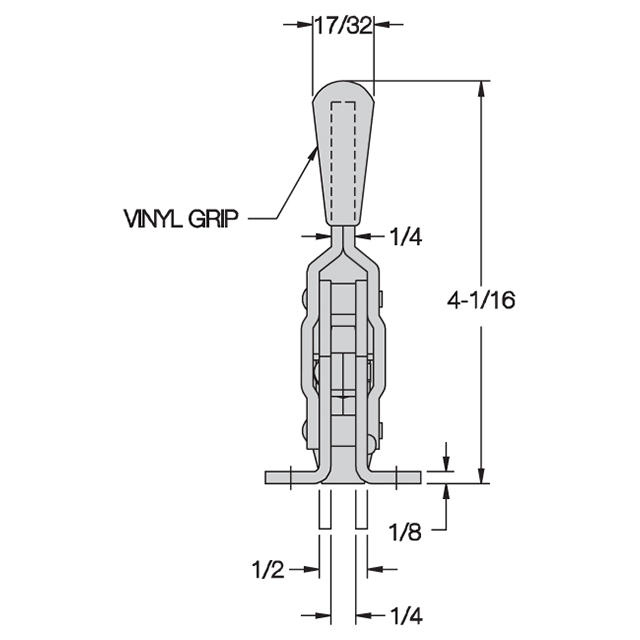

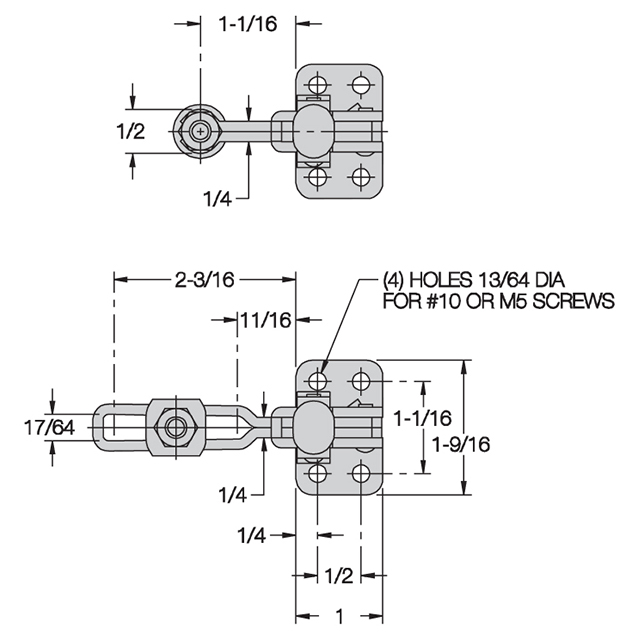

Material

Parts Specification
