Jig Feet Leveling Assemblies

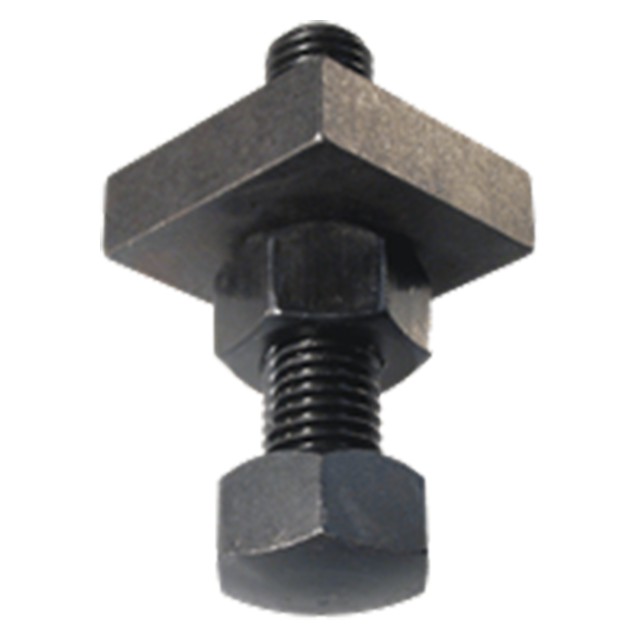

Heavy-duty leveling assembly includes a radius-head screw, tapped plate, and hex nut. Made in USA.
Application Information
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged in the standard plate. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | H (Inch) | Load Rating (lbs) |
| 5/8-11" | 4" | 1-1/16" | 5/8" | 2" | 2" | 0.63" | 6600 lbs |
