Product Information

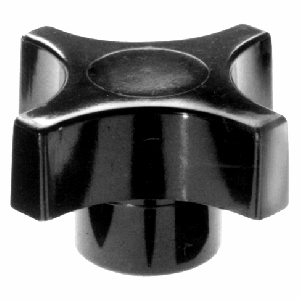

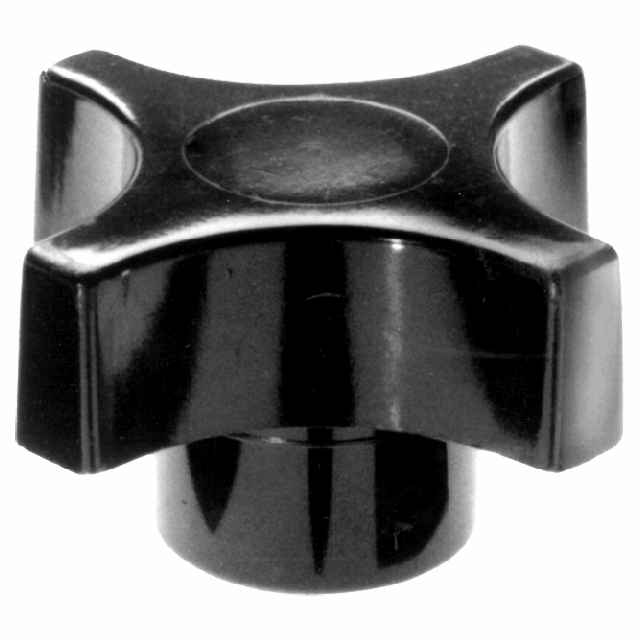

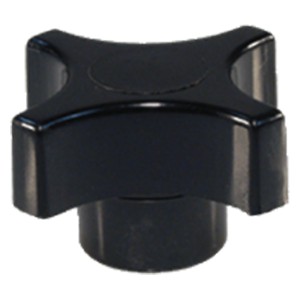

Easy-grip phenolic knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Molded-in brass insert provides superior thread strength. Choice of three knob sizes, with tapped-hole sizes from #10-32 to 1/2-13 (M6 to M10 in metric). Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.
Available Sizes
5/16-183/8-161/2-13M10 1/4-205/16-183/8-16M8 #10-24#10-321/4-205/16-18M6
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Four-Prong Knobs – Tapped (Phenolic) | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass | ✔ | ✔ |
Parts Specification

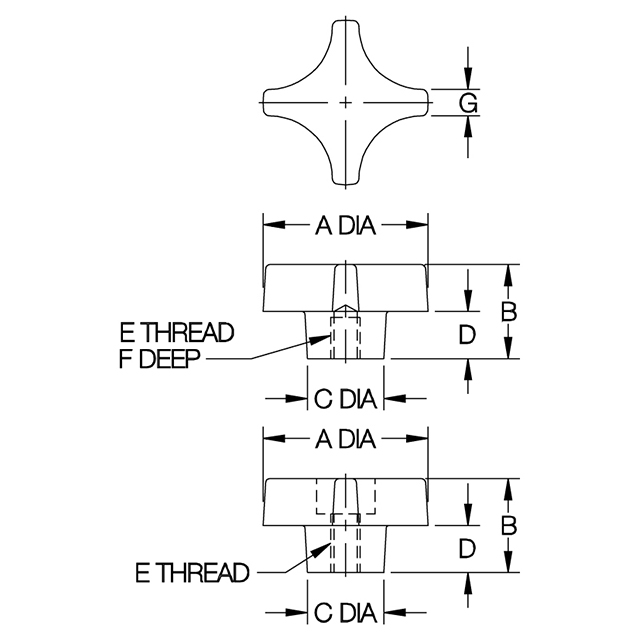

| Part Number | A | B | C DIA | D | E THREAD | F THREAD DEPTH | G |
| CL-30-PPK-4-PACKOF2 | 2-1/4 | 1-1/8 | 1 | 9/16 | 3/8-16 | 1/2 | 5/16 |
