Product Information

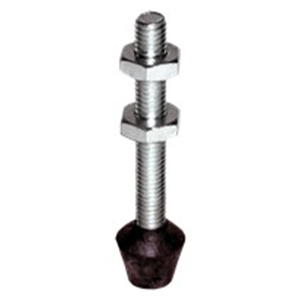

This is the standard spindle supplied with most clamps. Molded neoprene tip provides medium clamping force with some compensation for part-size variation. Also provides scratch-free clamping. Fully threaded for maximum adjustment range. Assembly includes two jam nuts. Available in the thread sizes from #10-32 to 3/8-16, most in a choice of lengths.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Mild Steel | - | Zinc plated clear chromate, with molded-on neoprene cushion, durometer hardness 70 shore A, operating temperature range -40 Degree to 220 Degree | ✔ | ✔ |
Parts Specification

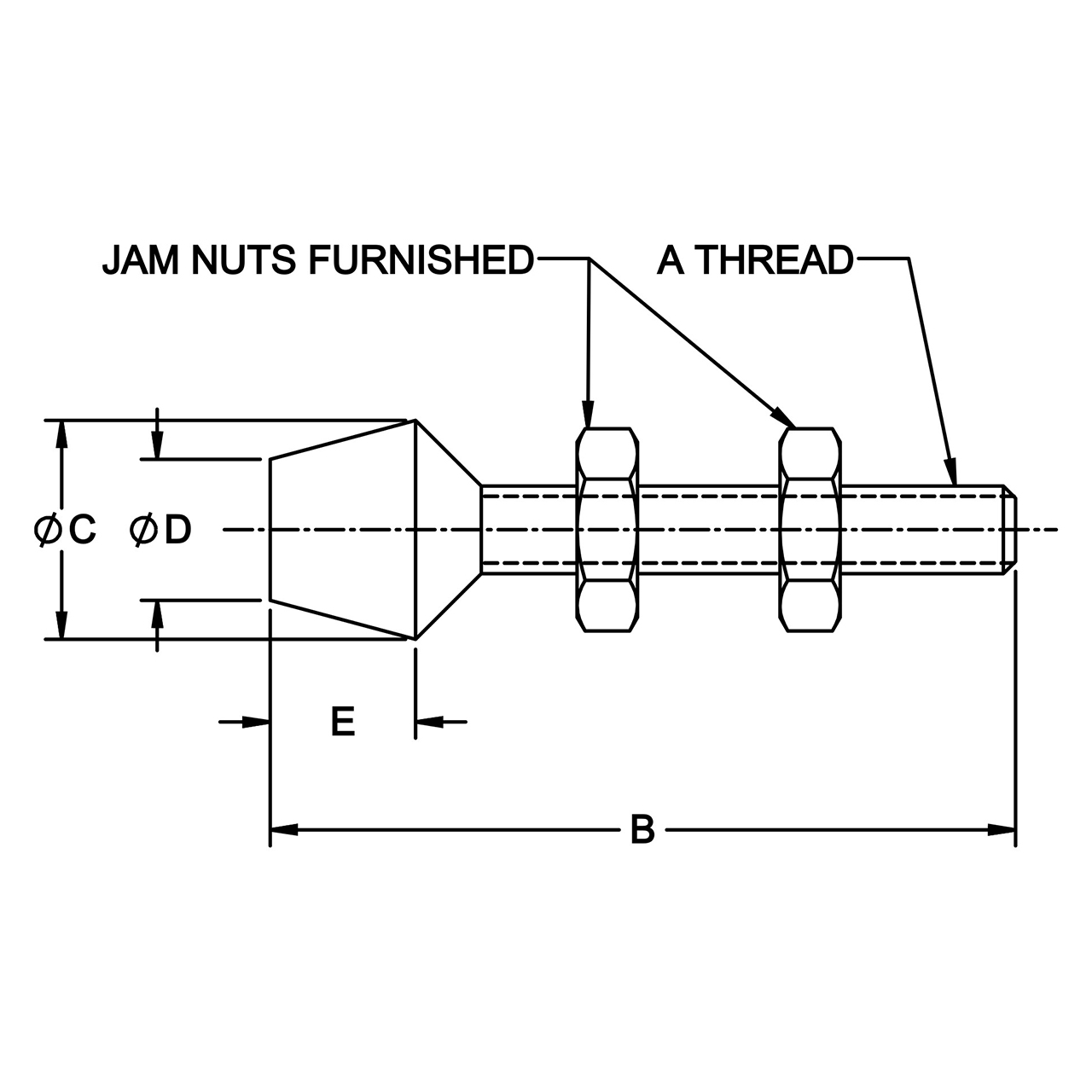

| Part Number | A THREAD | B ±.05 | C DIA | D DIA | E |
| CL-316112-FC-PACKOF2 | #10-32 | 1-3/8 | 9/16 | 7/16 | 7/32 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
#10-32
Diameter (Inch):
9/16"
Diameter (Decimal Inch):
0.5600"
Diameter (mm):
14.29mm
