Carr Lane CL-3220-2 | 1/4-20 Thread Tapped-Heel Clamp Strap

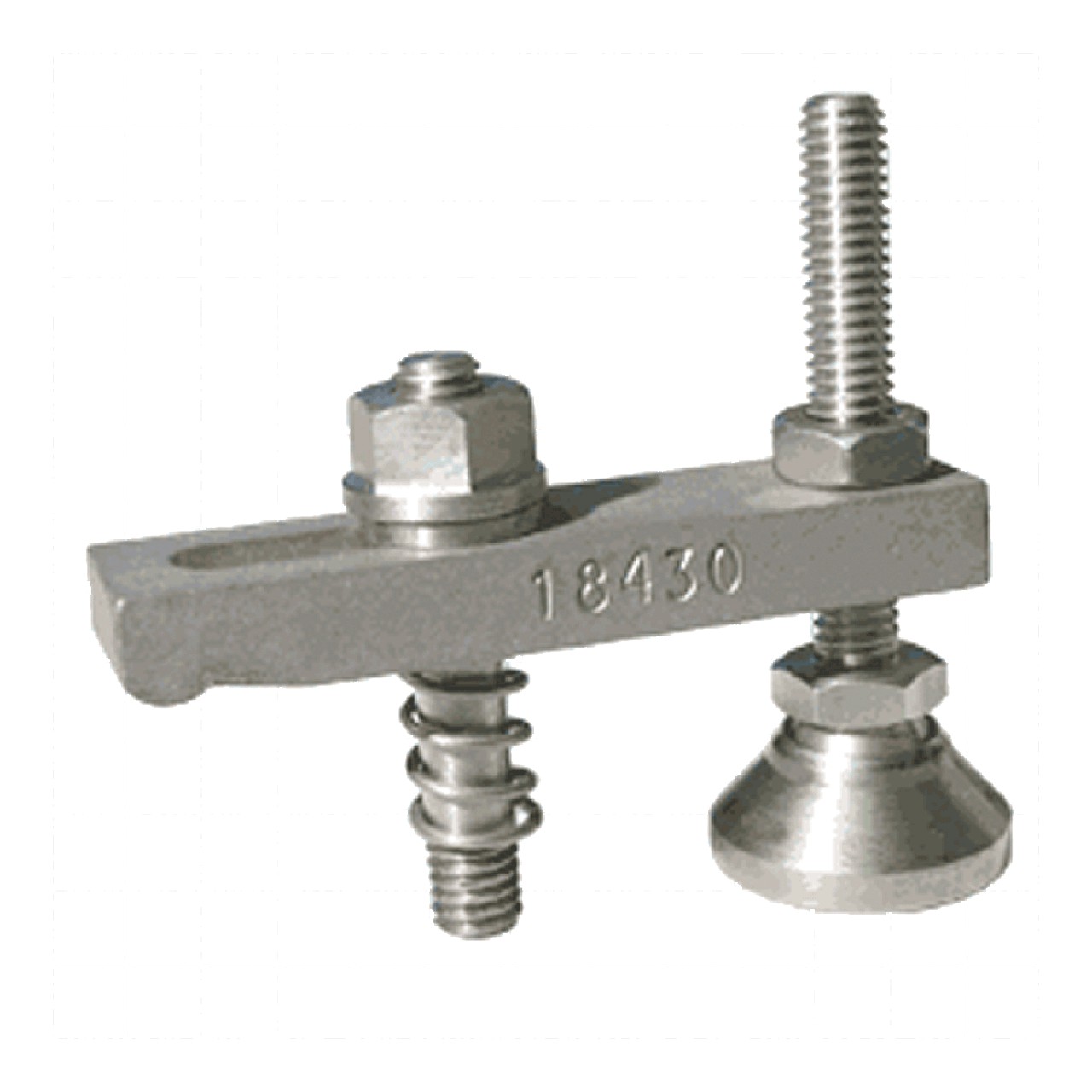

Tapped-Heel Clamp Strap Assembly

Mini-size stainless steel version of Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

Application Information

Assembley with Leveling Foot (-2)

This assembly includes a Tapped-Heel Clamp Strap plus the following Items:

• Leveling Foot
• Flange Nut
• Fixture Stud
• Clamp Spring
• Flat Washer

Material

Parts Specification
