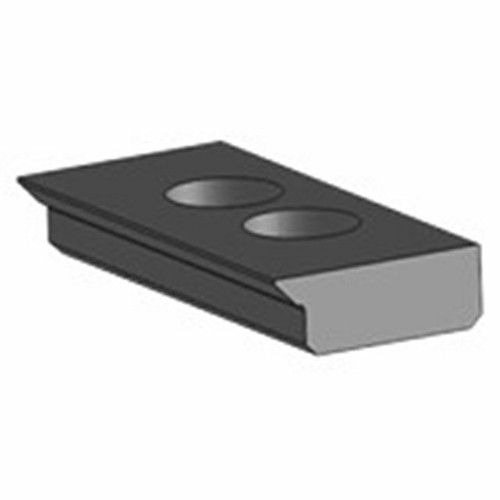

Dovetail Clamping System

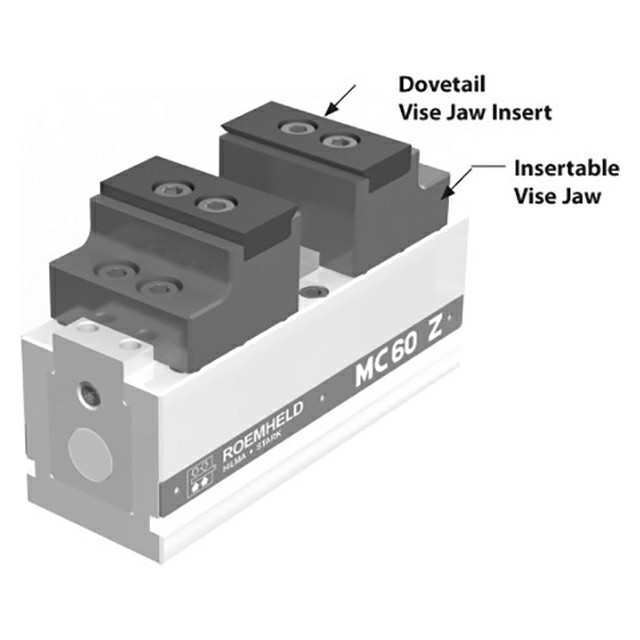

Dovetail clamping requires leaving excess Material at the bottom of each workpiece for machining a male dovetail. This machined dovetail extension is used to clamp on during 5-axis work, by a mating dovetail clamp or vise jaw, then is removed in a secondary machining operation.
Application Information

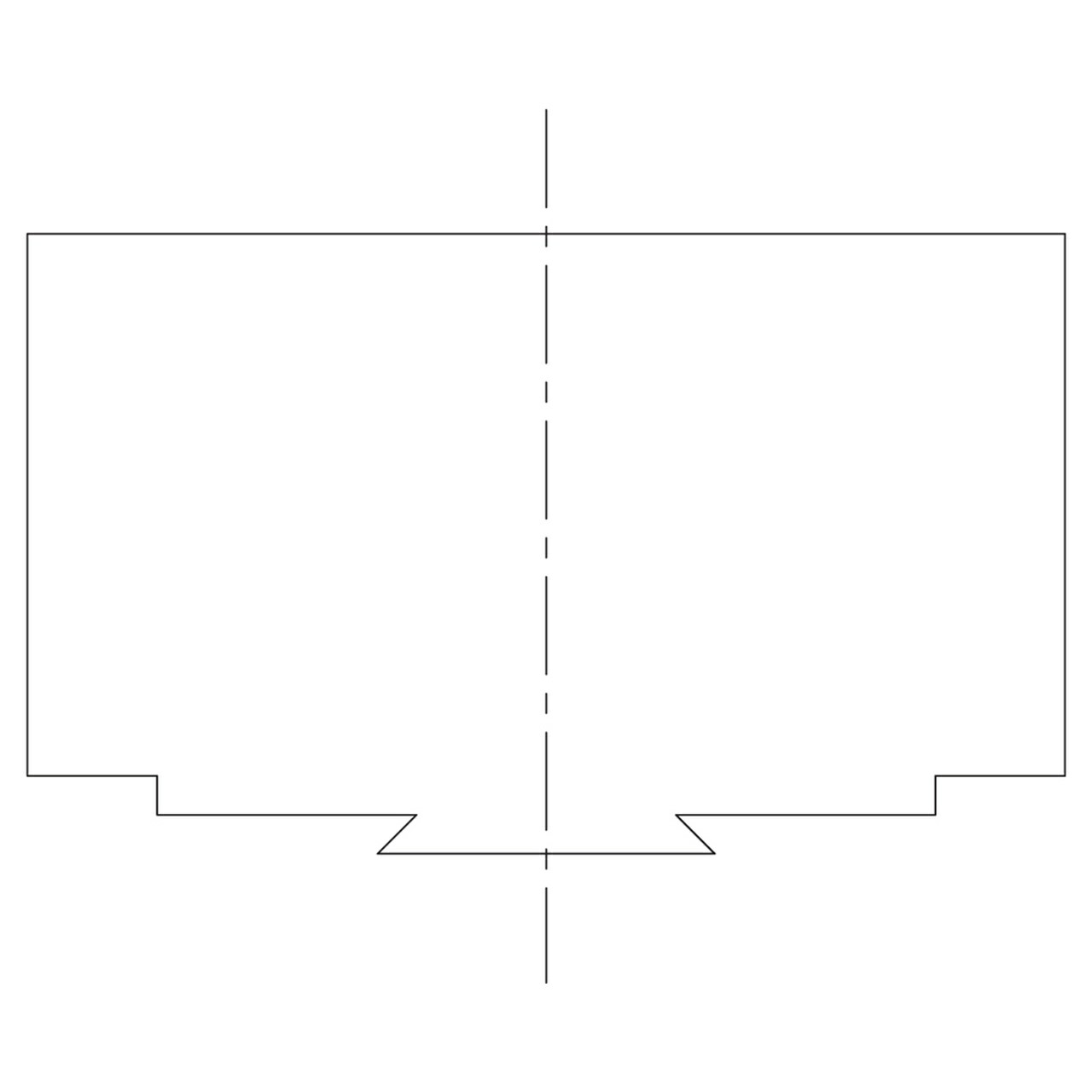

Example dovetail extension at bottom of workpiece.
Material
| Material | Heat Treat | Finish |
| 1018 Steel | Carburized Hardened | Black Oxide |

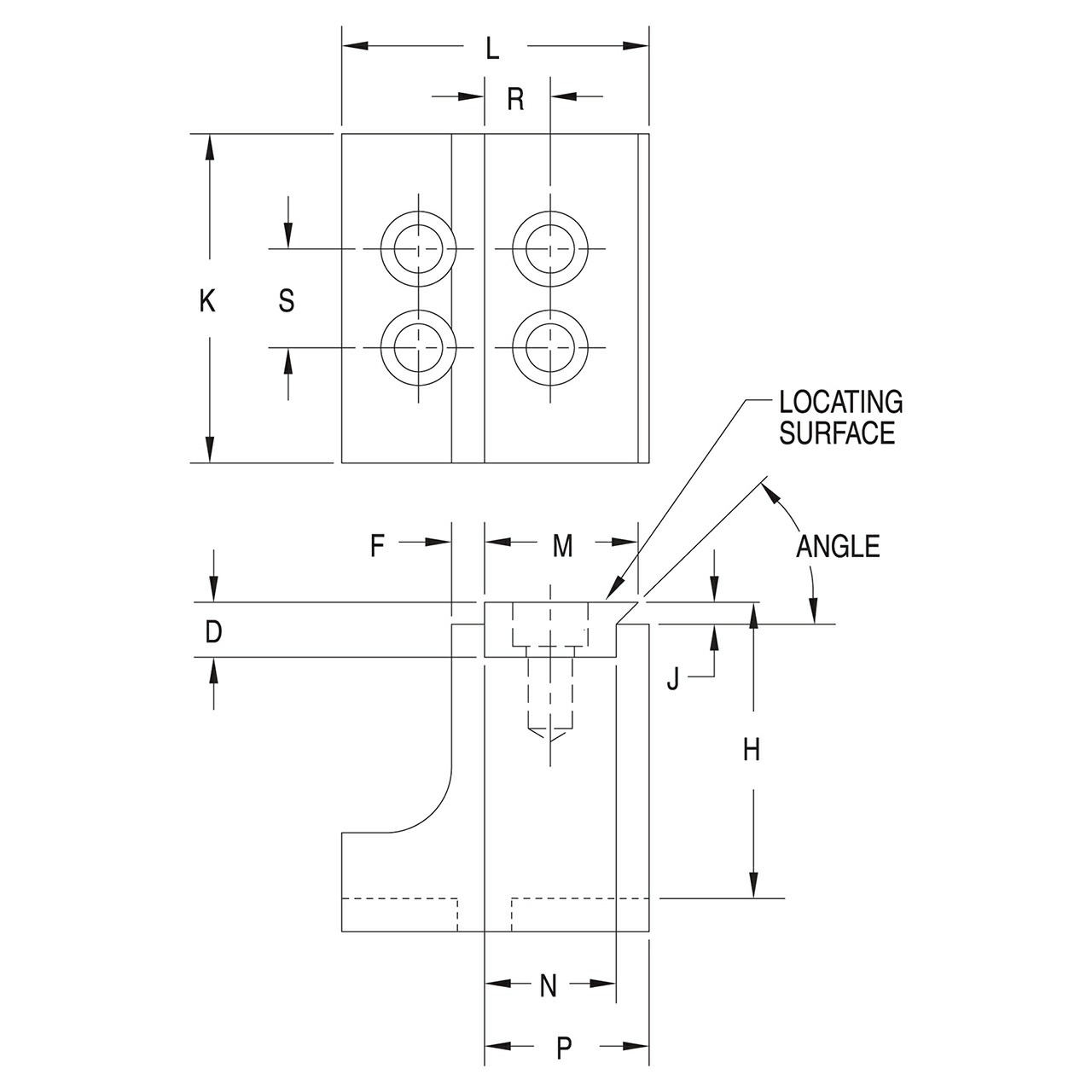

Parts Specification
| Dovetail Angle |
| 60 Degree |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
