Carr Lane CL-3A-FSS-PACKOF3 | 0.298 Diameter Small Feet – Type A

Product Information

Type A swivel feet are smaller than the swivel screw's minor thread diameter, allowing the swivel screw to pass through a tapped hole. These feet are available in the following materials and finishes, each available in five sizes to fit swivel-screw bodies from 1/4-20 to 5/8-11 (M6 to M16 in metric). Made in USA.          Steel, Zinc Plated Yellow Chromate          Steel, Black Oxide Finish          Stainless Steel          White Delrin

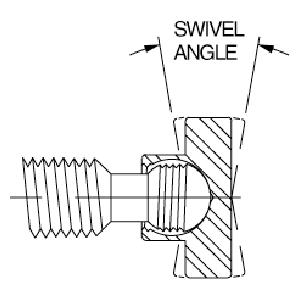

Patented Design

Feet for Swivel Screws are an important part of our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20 Degree total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional. Note: Delrin feet are not threaded – they snap on and off.

Material

Parts Specification
