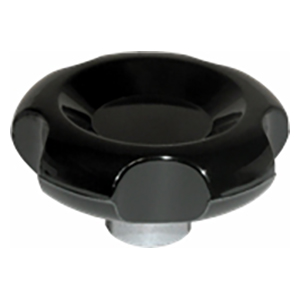

Small five-lobed phenolic hand wheels that are useful as control knobs or clamping knobs. Molded-in steel hub, blank with a pilot hole. Available in two diameters.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Body | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | - | ✔ | ✔ |
| Hub | Mild Steel | - | Zinc Plated Clear Chromate, Molded In | ✔ | ✔ |

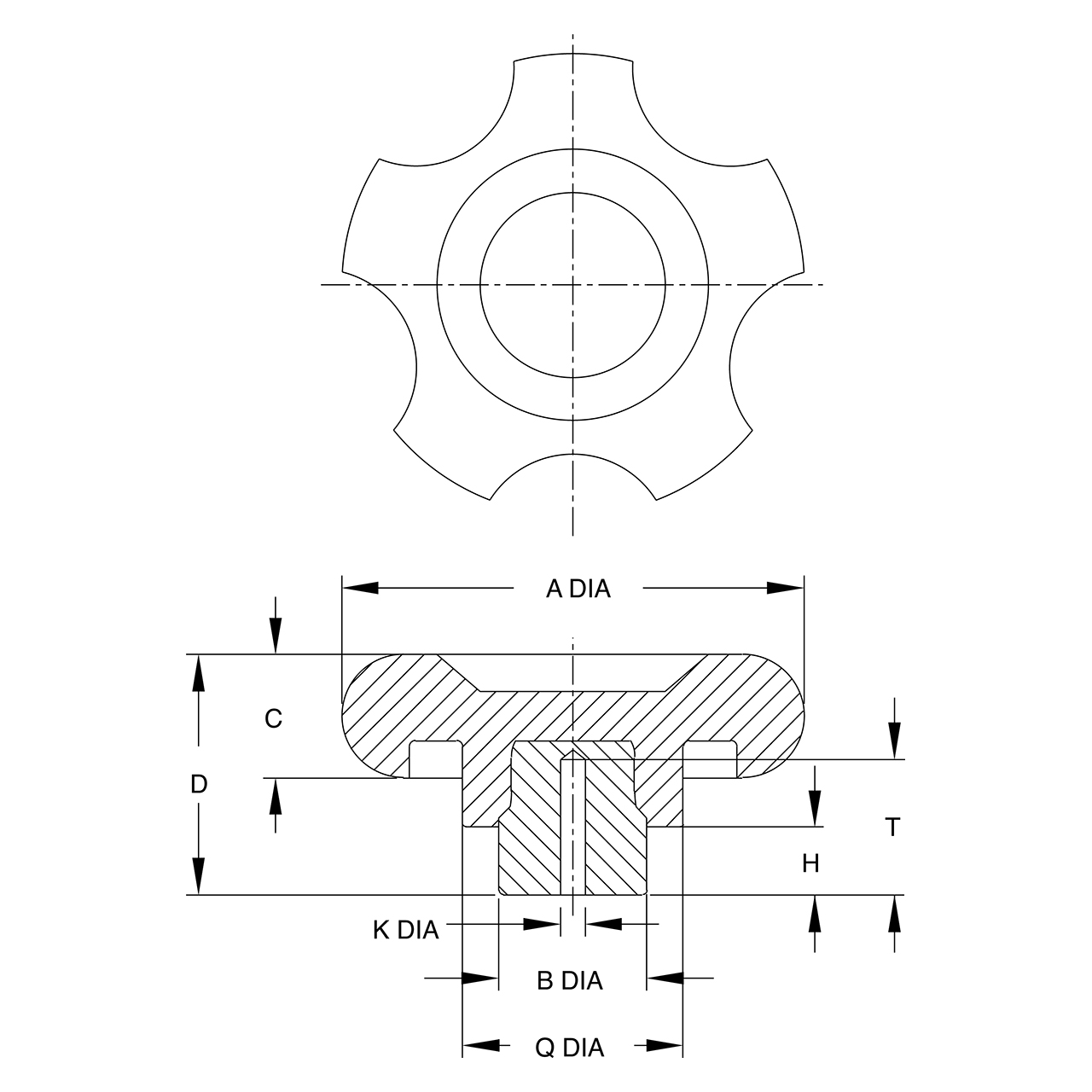

Parts Specification
| Part Number | A DIA | B DIA | C | D | H | K DIA | G DIA | T |
| CL-4-FHW | 3.54 | 1.26 | .79 | 1.65 | .47 | .236 | 1.73 | .98 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3-27/50"
Diameter (Decimal Inch):
3.5400"
Diameter (mm):
89.92mm
