Product Information

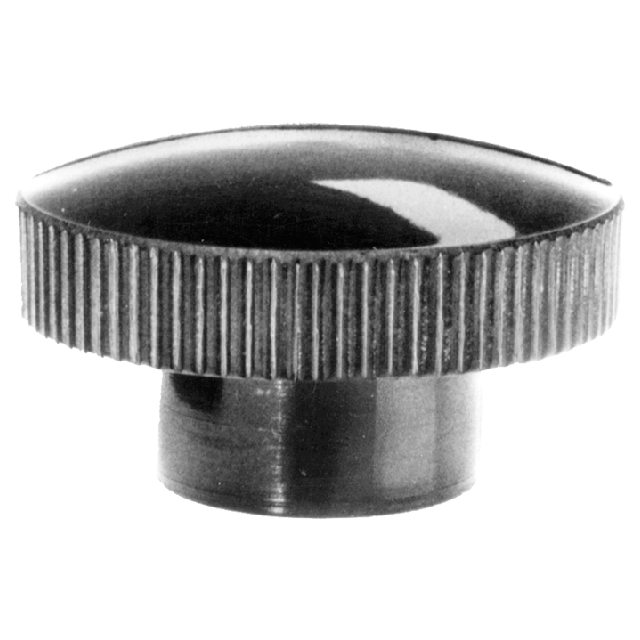

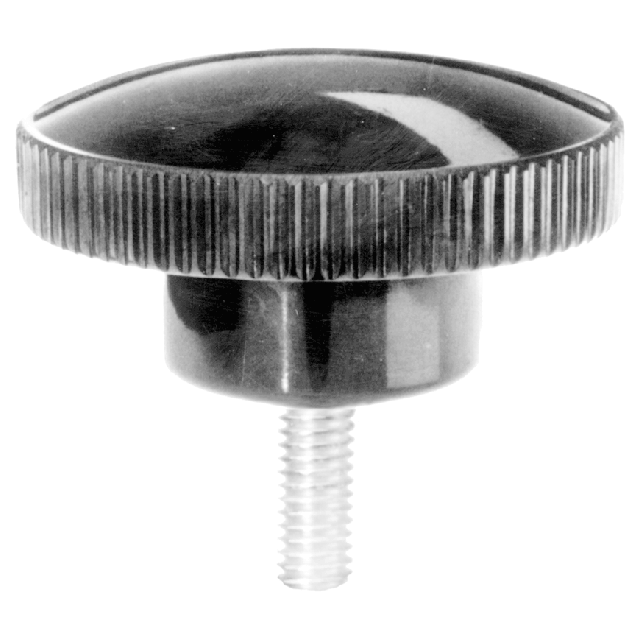

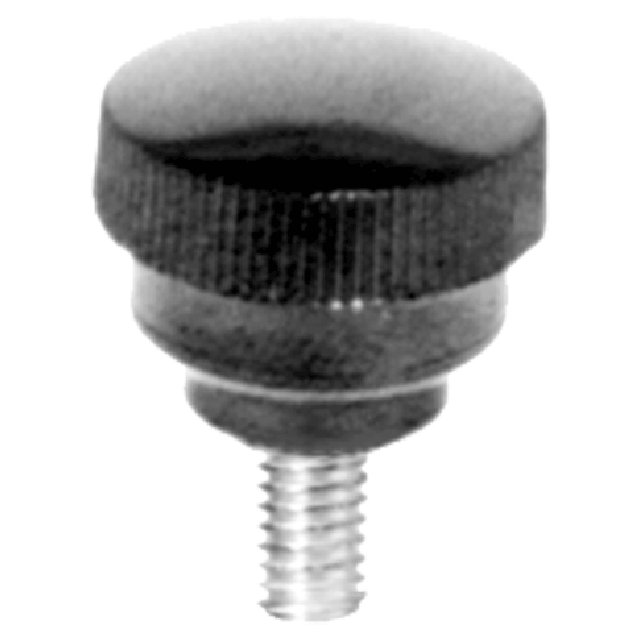

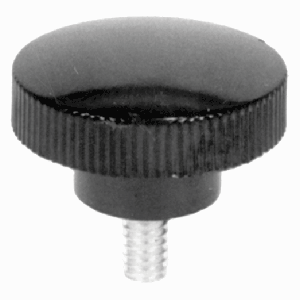

Small, easy-grip phenolic knob. Knurled head provides a positive grip for finger tightening in light clamping applications. Molded-in steel stud provides superior strength. Choice of four knob sizes, with stud sizes from #8-32 to 3/8-16 (M5 to M10 in metric). Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.

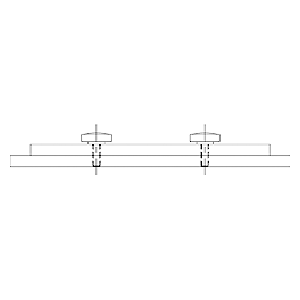

Application Information
Available Sizes
3/8-16M10 1/4-205/16-18M8 1/4-20M6 #8-32#10-321/4-20M5
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Mild steel stud, zinc plated clear chromate) | ✔ | ✔ |

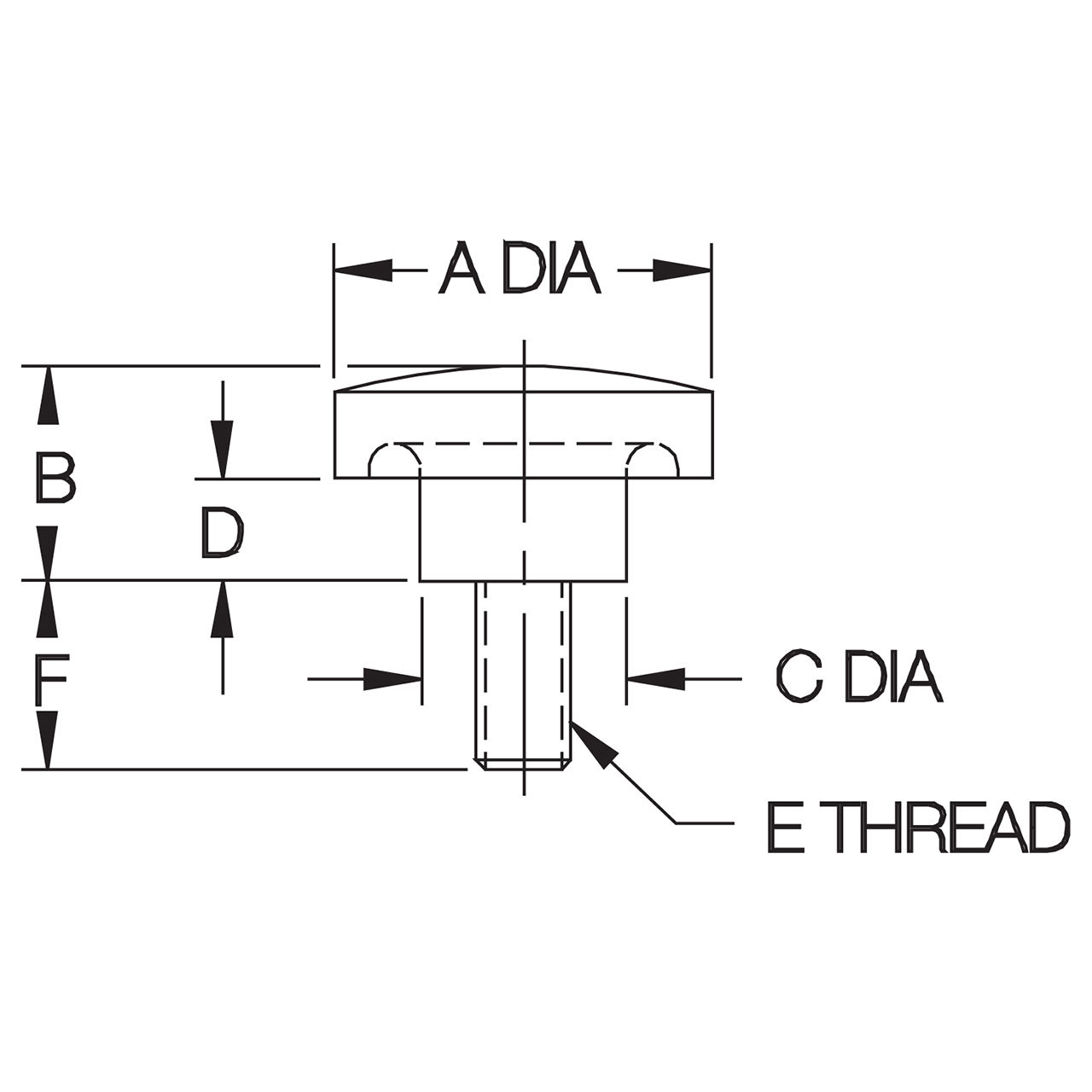

Parts Specification
| Part Number | A DIA | B | C DIA | D | E THREAD | F |
| CL-432-KTK-16-PACKOF2 | 1 | 21/32 | 5/8 | 5/16 | 1/4-20 | 1 |
