Extra-Wide Opening
Open Arm, Flanged Base
Extra-wide-opening clamp with a handle that locks at a downward angle. Unique up-then-down handle motion opens the clamping arm a full 185°. Dual flange bases allow mounting on vertical surfaces as well as horizontal. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 375 lbs. holding capacity.

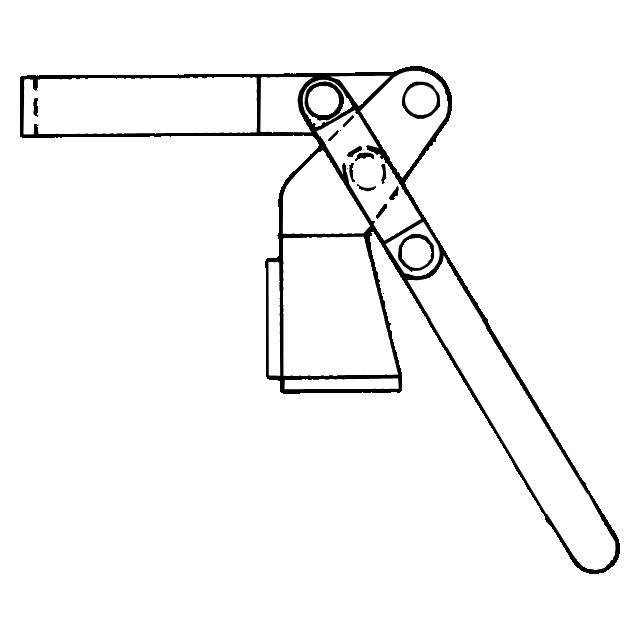

Clamping Action
Clamped Position
IntermeDiameter (Inch)te Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base | 375lbs. | 0.8lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
