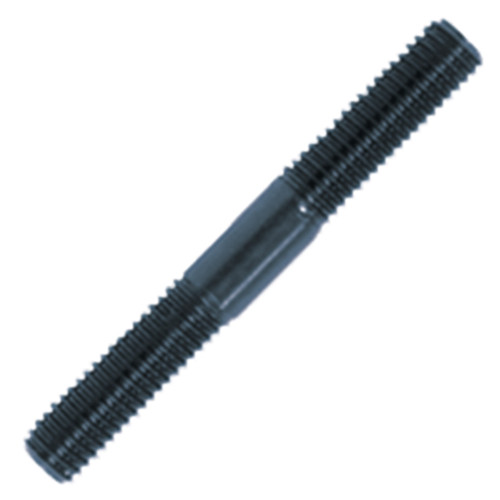

Clamping Studs
High-strength general-purpose Clamping Stud, for use with a T Nut, or for installation directly into a fixture plate. Made in USA.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamping Stud | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | Length (Inch) | A ±.063 (Inch) |
| 5/8-11" | 8.00" | 1-3/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
