Carr Lane CL-5-BLHL-1.50-S | 5/16" Diameter x 1.500" Grip Length Heavy-Duty Ball Lock Pins (L Handle)

Product Information

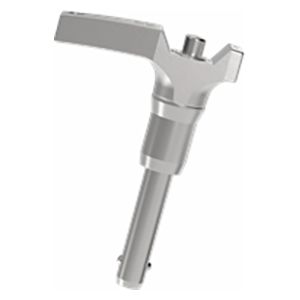

L Handle Heavy-Duty Ball Lock Pins are similar to our standard single-acting Ball Lock Pins, except they are available only in stainless steel, and have a larger, heavier handle for rough service. Handles are made of solid stainless steel for maximum impact strength, and are specially shaped to prevent accidentally pressing the release button. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. The L-handle version shown here is one of the four available handle styles for Heavy-Duty Ball Lock Pins. Made in USA. Available in pin diameters from 3/16 to 1/2" (5 to 12mm in metric), in stainless steel only. Standard grip lengths for each diameter are listed in the tables below, most in stock for same-day shipment. Pins with special grip lengths up to 12” (300mm) and other special features are available with additional lead time. The Part Configurator link at the top of this page can be used for any Heavy-Duty Ball Lock Pin, either standard or special.

Technical Information

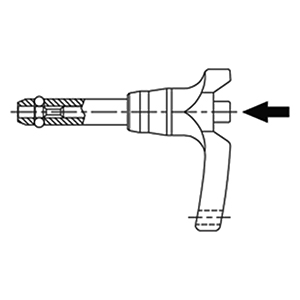

Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.

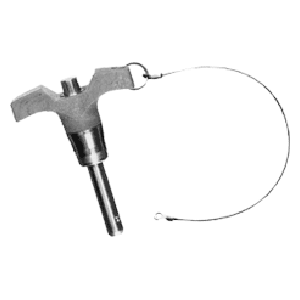

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0 — #2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number:          CL-4-BLHL-1.50-S-CFor an optional 10" nylon lanyard, add "-NL" to the part number:          CL-4-BLHL-1.50-S-NL

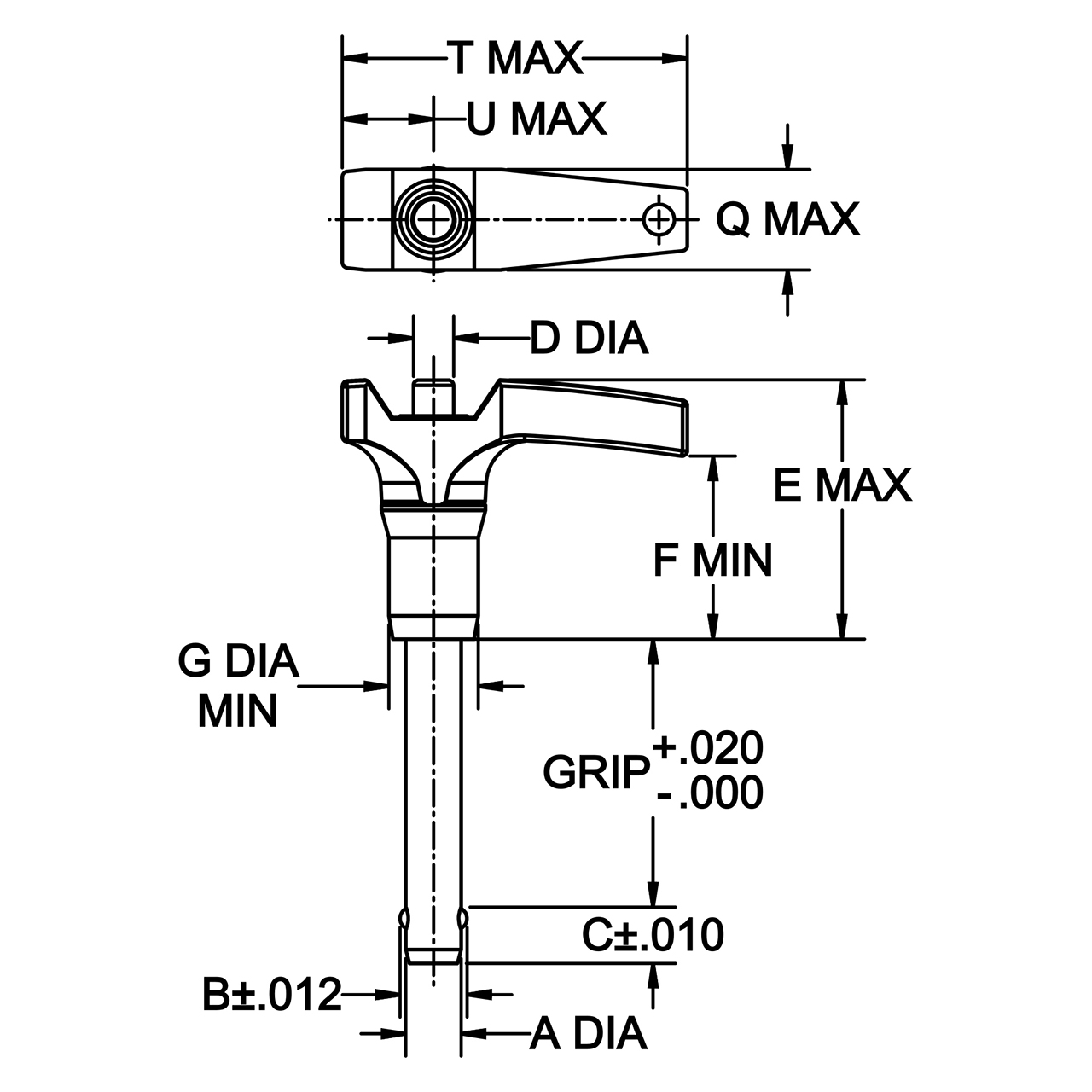

Material

Parts Specification
