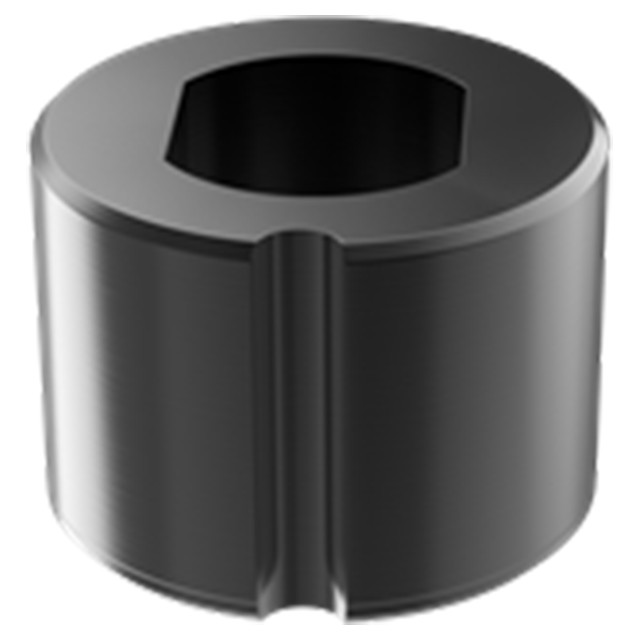

Carr Lane CL-5-CSLB | 5/16" Diameter Slotted Locator Bushing

Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Many sizes are optionally available in hardened 440C stainless Steel as well as carbide. Made in USA.

Application Information

A standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.

Installation

To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for 0.0003-0.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.

Parts Specification
