Product Information

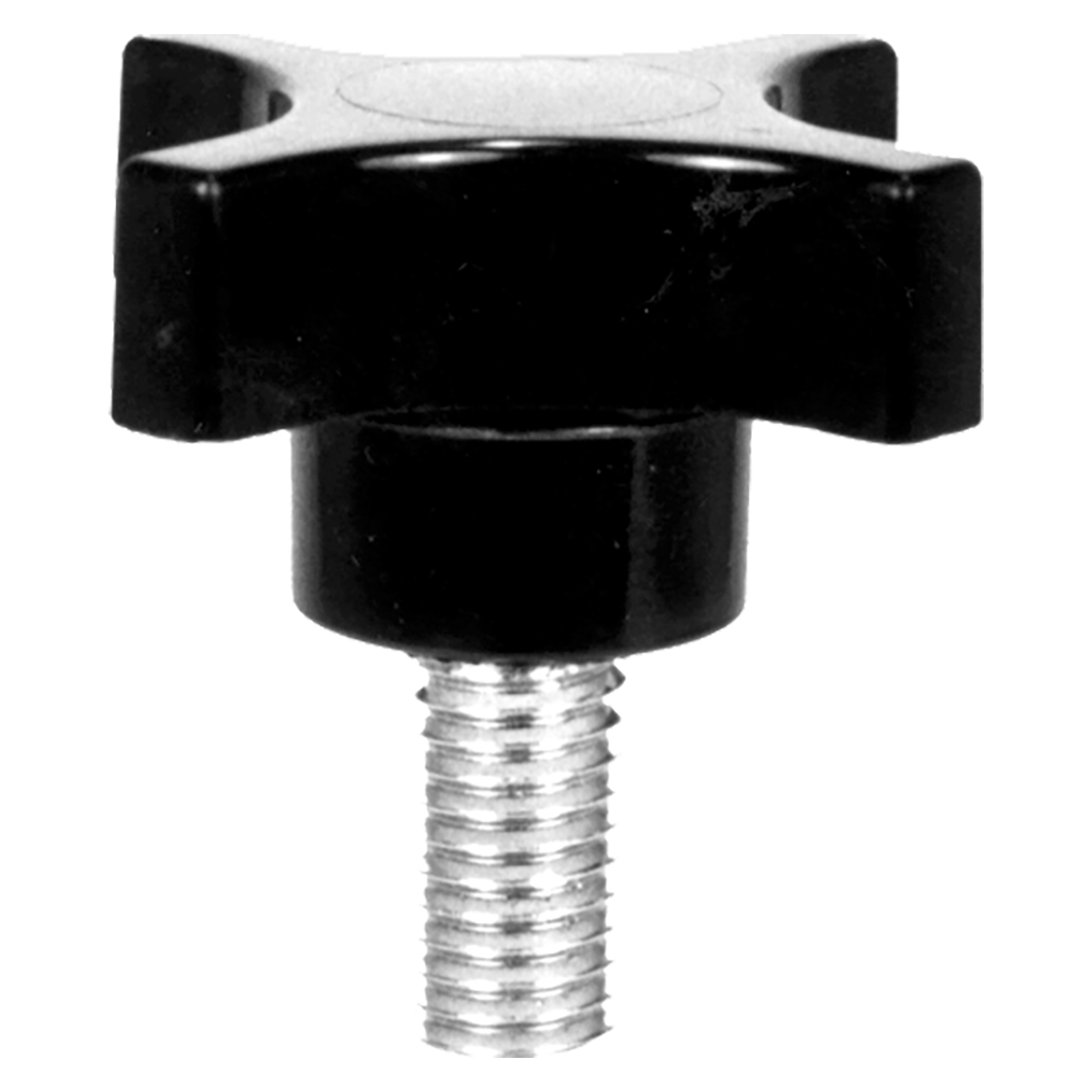

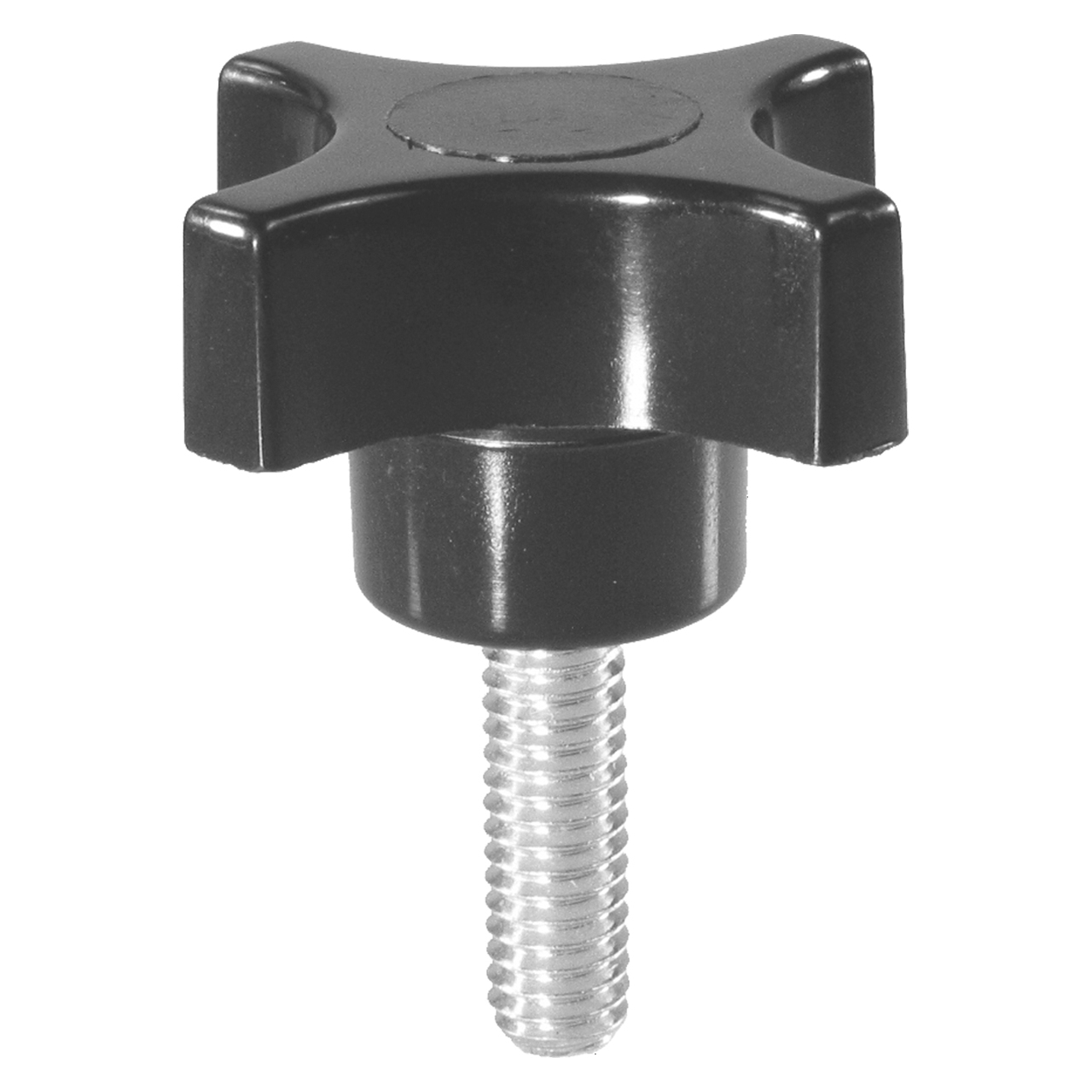

Easy-grip phenolic knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Molded-in steel stud for superior strength. Choice of three knob sizes, with stud sizes from #10-32 to 1/2-13 (M6 to M10 in metric), most in several stud lengths. Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.
Available Sizes
3/8-161/2-13M10 1/4-205/16-18M8 #10-24#10-321/4-20M6
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Four-Prong Knobs – Stud Type (Phenolic) | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass | ✔ | ✔ |
| Mild Steel Stud | Zinc Plated Clear Chromate | - | - | ✔ | ✔ |

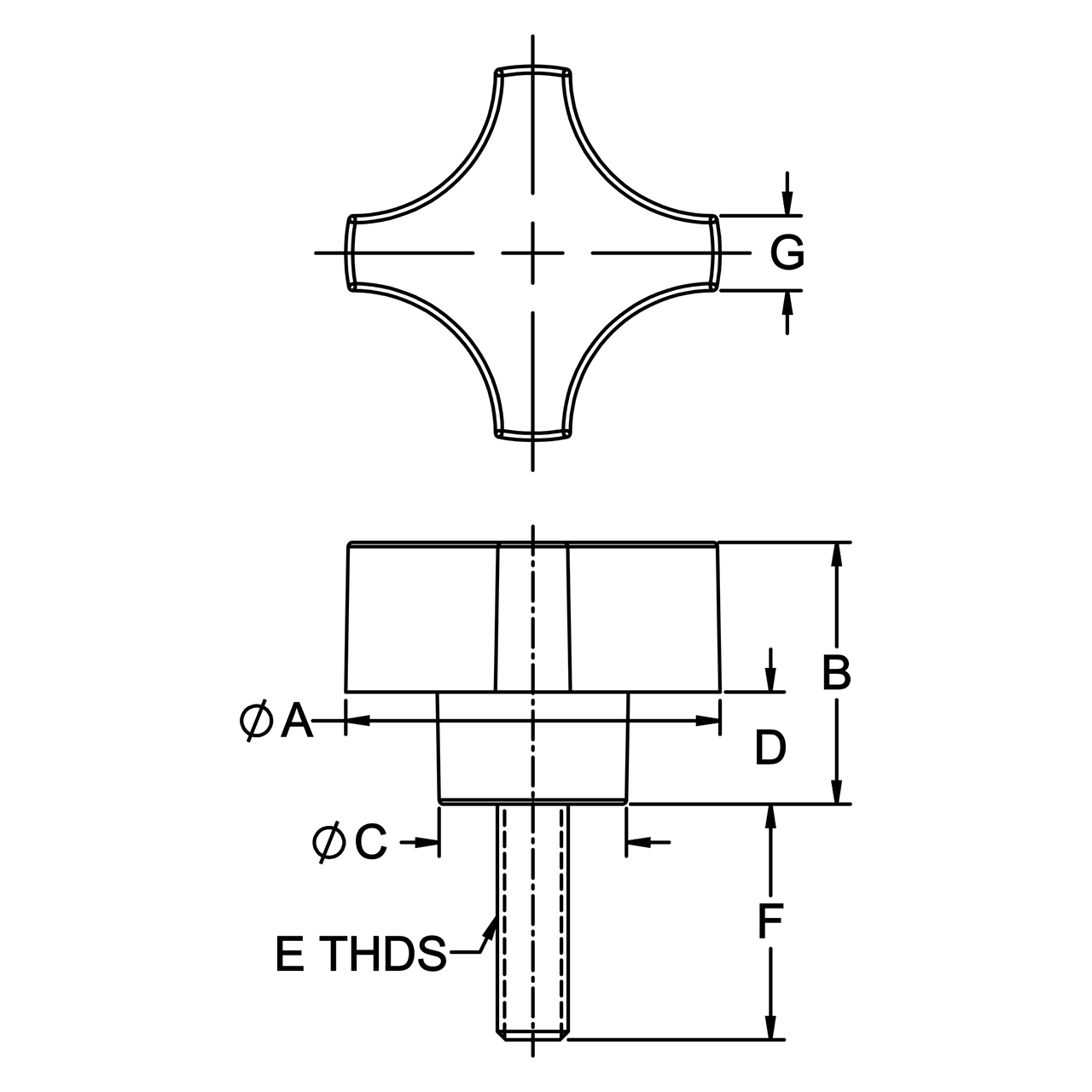

Parts Specification
| Part Number | A | B | C DIA | D | E THREAD | F | G |
| CL-5-PPK4T-PACKOF2 | 2-1/4 | 1-1/8 | 1 | 9/16 | 3/8-16 | 2 | 5/16 |
