Product Information

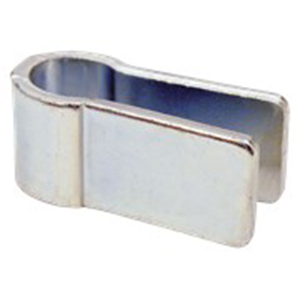

Use for mounting spindles on solid-arm clamps. Weld-on bolt retainer at desired arm length and spindle angle. Available to fit spindle sizes from 1/4-20 to 5/8-11 (M6 to M16 in metric).
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1008, 1010, or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
Parts Specification

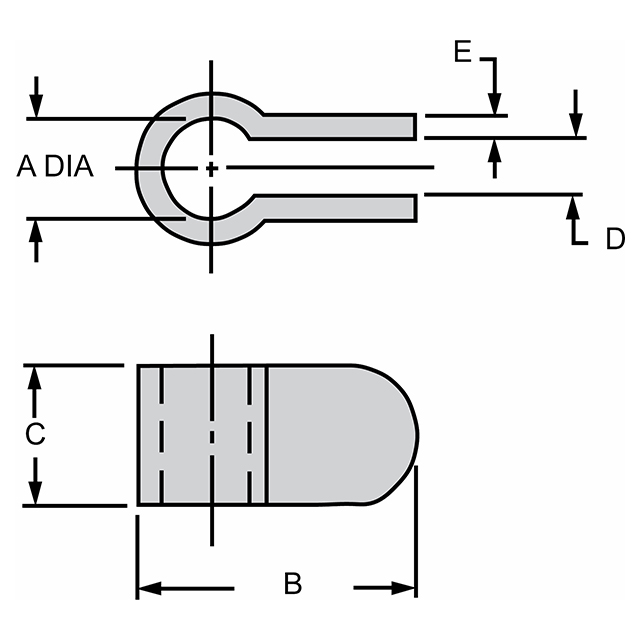

| Part Number | SPINDLE SIZE | A DIA | B | C | D | E |
| CL-518000-BR-PACKOF2 | 5/16-18 or M8 | 21/64 | 1-1/4 | 5/8 | 1/4 | 3/32 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
5/16-18"
Diameter (Inch):
21/64"
Diameter (Decimal Inch):
0.3300"
Diameter (mm):
8.33mm
