Carr Lane CL-520-BHSD | 5/16-18" Thread x 2" Length Bar-Handle Screw Clamp

Product Information

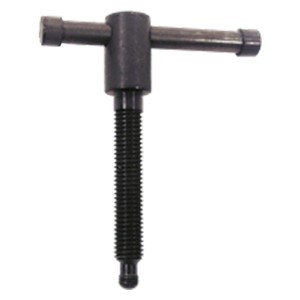

Heavy-duty screw clamp with a sliding bar handle for excellent leverage. The sliding bar can be moved to any position for convenient tightening, and is held in place by light spring force. These screw clamps accept all standard types of swivel feet. Available in body-thread sizes from 5/16-18 to 5/8-11 (M8 to M16 in metric), each in a choice of several lengths. Available in steel or stainless steel. Made in USA.

Application Information

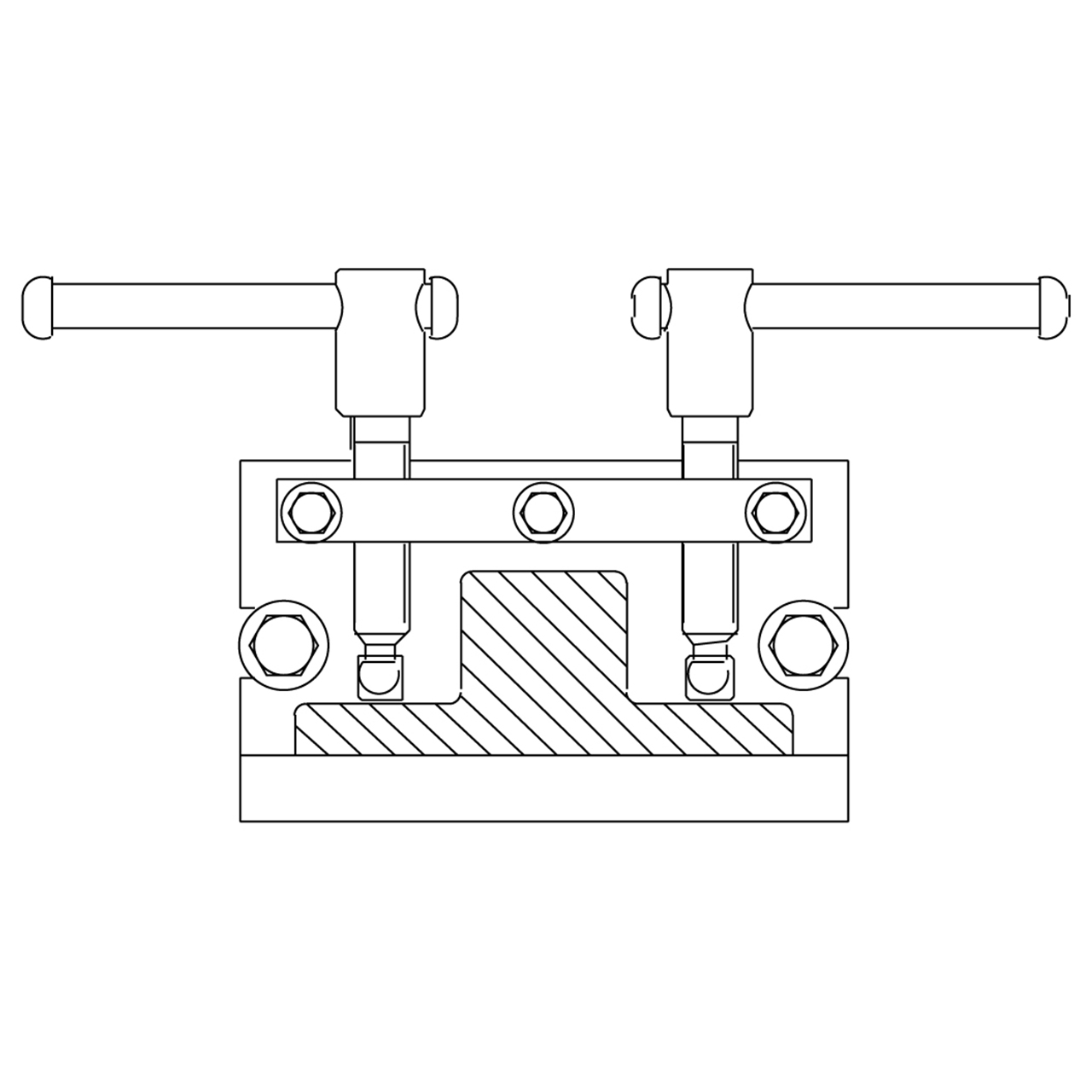

The sliding bar can be positioned for convenient clamping in tight spaces

Swivel Foot

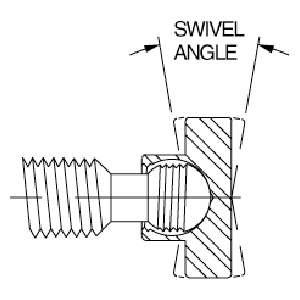

Choice of four foot types. Bar-Handle Screw Clamps use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20 Degree total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B. To order with a Delrin foot, add "N" to the part number, e.g. CL-620-BHSAN. Note: Delrin feet are not threaded – they snap on and off.

Material

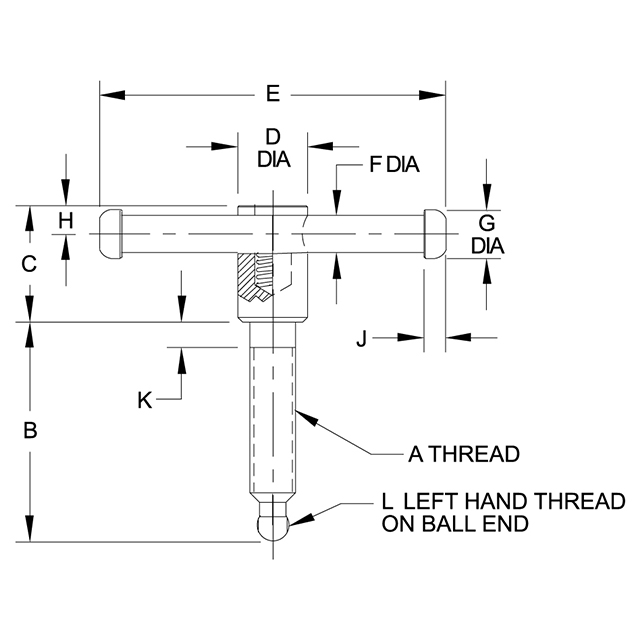

Parts Specification
