Carr Lane CL-5818-KS | 5/8-18" Thread x 0.87" Length Key Insert

$8.70
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
70024485
UPC:
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Key Inserts-Heavy Duty

General-purpose threaded inserts with a thick, heavy-duty thread wall, suitable for most applications. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. They provide strong, permanent steel threads in almost any parent Material-ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.

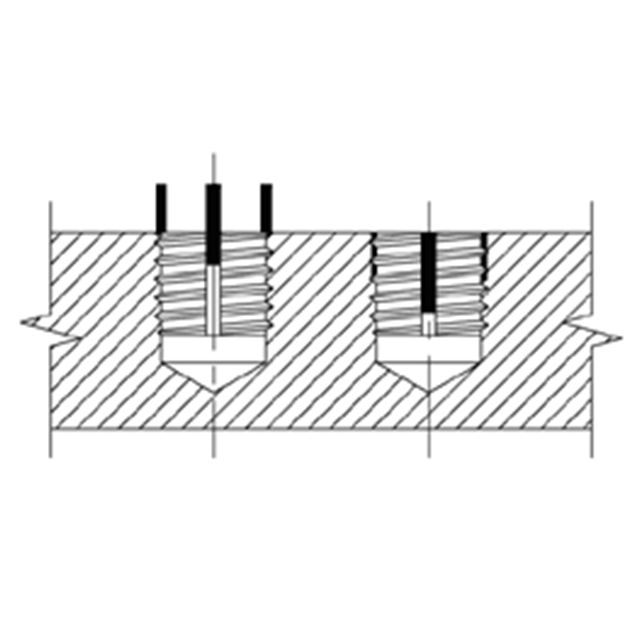

Application Information

Key Inserts are often used to reinforce tapped holes in aluminum tooling plates.

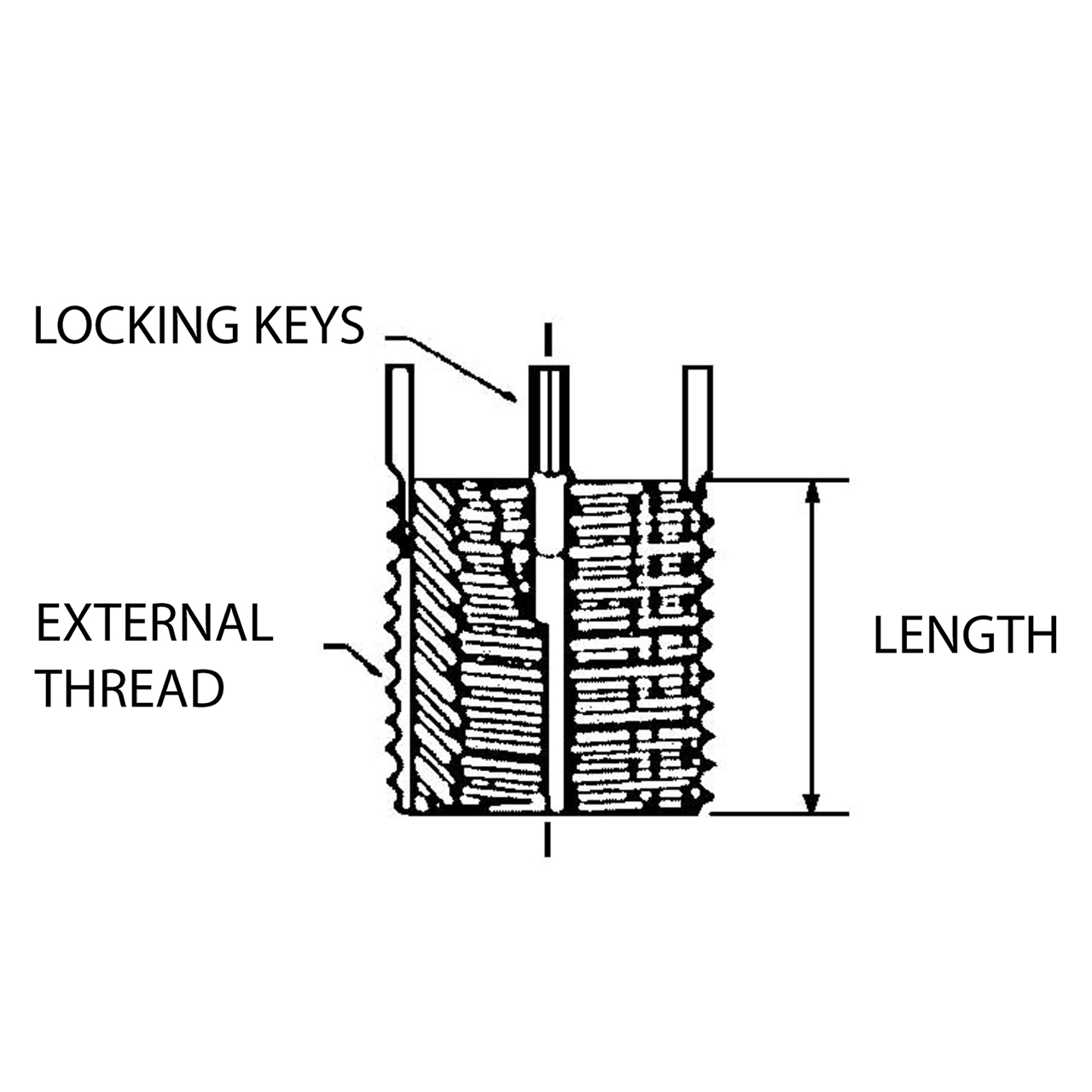

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body1215 SteelYesBlack Oxide or Dry LubeYesYes
Keys302 Stainless SteelYesYesYesYes

Parts Specification

Internal Thread (Inch)External Thread (Inch)LengthShear Engagement Area (sq In.)
5/8-18"7/8-14"0.871.487 sq in.
